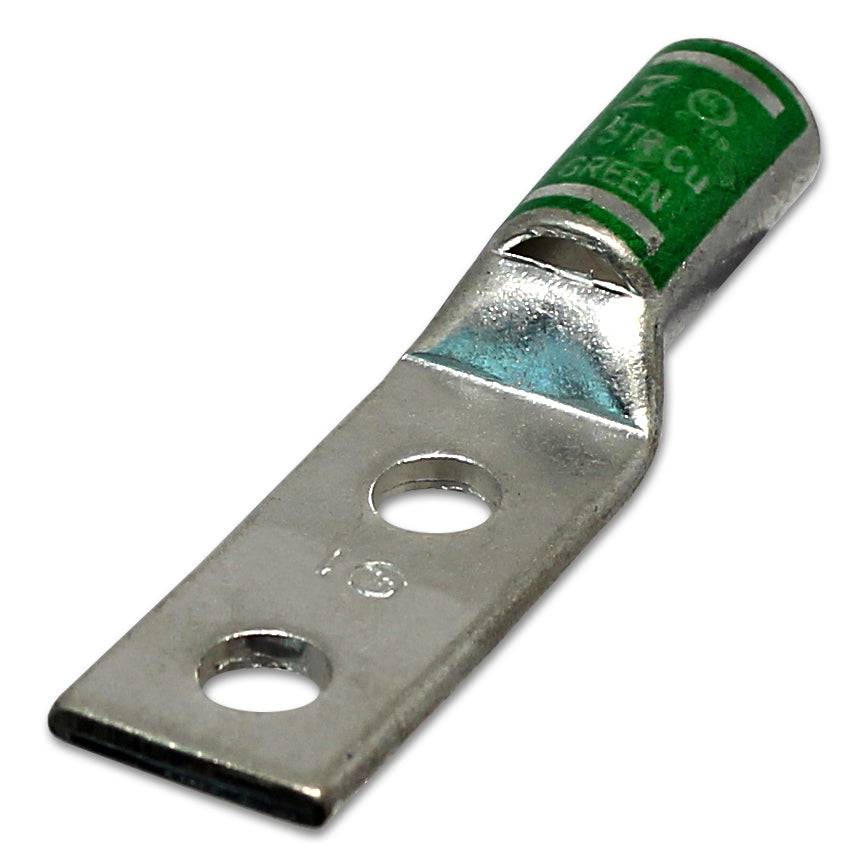

ST1516A - 1AWG Compression Lug - 5/16" Stud Size
Original price
$2.01
-
Original price
$2.01
Original price
$2.01
$2.01
-
$2.01
Current price
$2.01
SKU ST1516A
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 1 AWG |
| Color: | Green |
| L: | 66.3mm (2.61") |
| L1: | 41.4mm (1.63") |
| L2: | 22.4mm (0.88") |
| D: | 16.7mm (0.68") |
| D1: | 11.6mm (0.46") |
| D2: | 9.1mm (0.36") |
| B: | 20.3mm (0.80") |
| E: | 8.7mm (0.34") |
| F: | 2.5mm (0.10") |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 5/16" |
| Temperature Rating: | 90oC |
| Voltage Rating: | 35KV |
| Max Amp Rating: | 130 Amps |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
