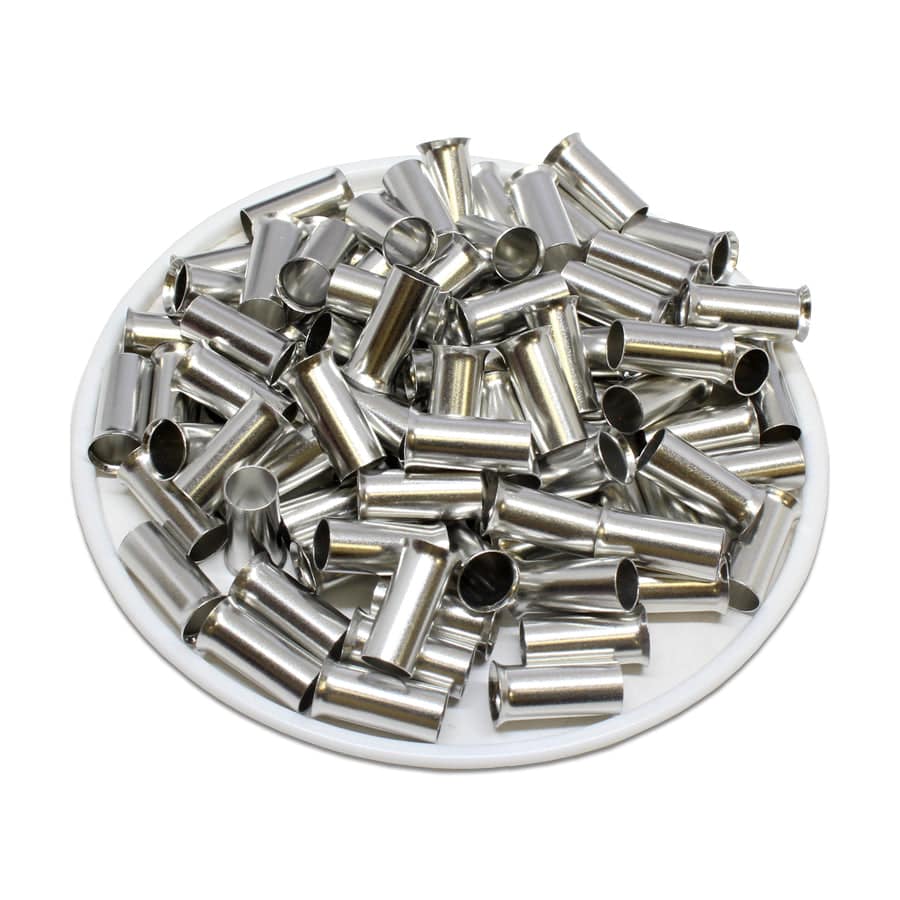

SF133012 - True 6 AWG (12mm Pin) Non Insulated Ferrules
Original price
$15.54
-
Original price
$15.54
Original price
$15.54
$15.54
-
$15.54
Current price
$15.54
SKU SF133012
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Technical Drawing:
None
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Range: | True 6 AWG (13.30mm2) |
| Material: | Tin-Plated Copper |
| L: | 12mm (0.47") |
| D: | 5.4mm (0.21") |
| D1: | 5.0mm (0.20") |
| D2: | 6.7mm (0.26") |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 95A |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:
