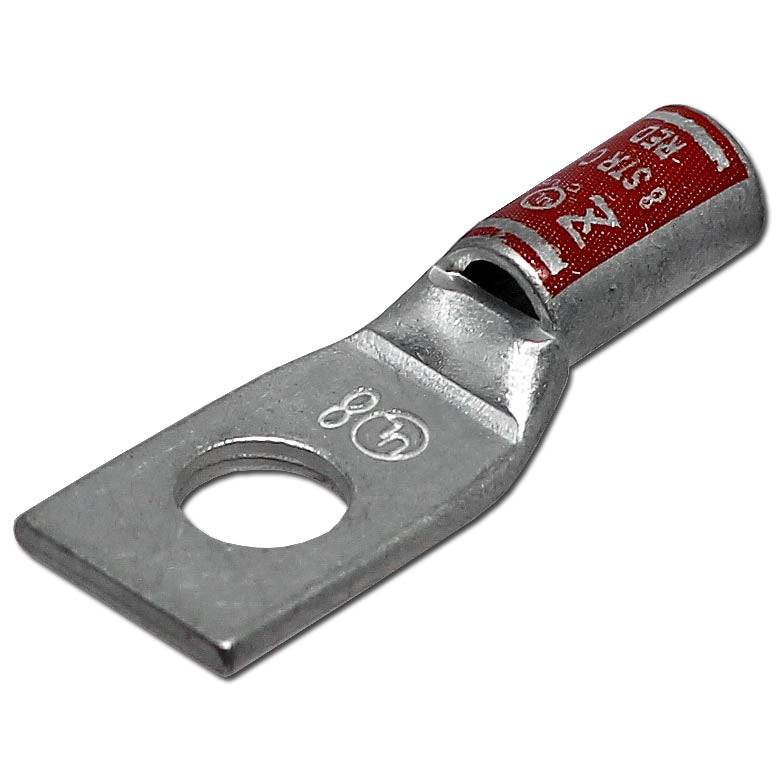

SB838 - 8AWG Compression Lug - 3/8" Stud Size
Original price
$0.60
-
Original price
$0.60
Original price
$0.60
$0.60
-
$0.60
Current price
$0.60
SKU SB838
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Click to view product spec sheet:
Dimensions & Features:
| Wire Size: | 8 AWG |
| Stud Size: | 3/8" Stud |
| Color: | Red |
| L: | 36.9mm (1.50") |
| L1: | 21.1mm (0.80") |
| D: | 15.2mm (0.60") |
| D1: | 7.1mm (0.28") |
| D2: | 4.8mm (0.19") |
| B: | 12.7mm (0.50") |
| E: | 10.4mm (0.41") |
| F: | 1.4mm (0.06") |
| Material: | Tin Plated Copper |
| Temperature Rating: | 90°C |
| Max Electrical Rating: | 35 KV |
| Max Electrical Current: | 50A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
