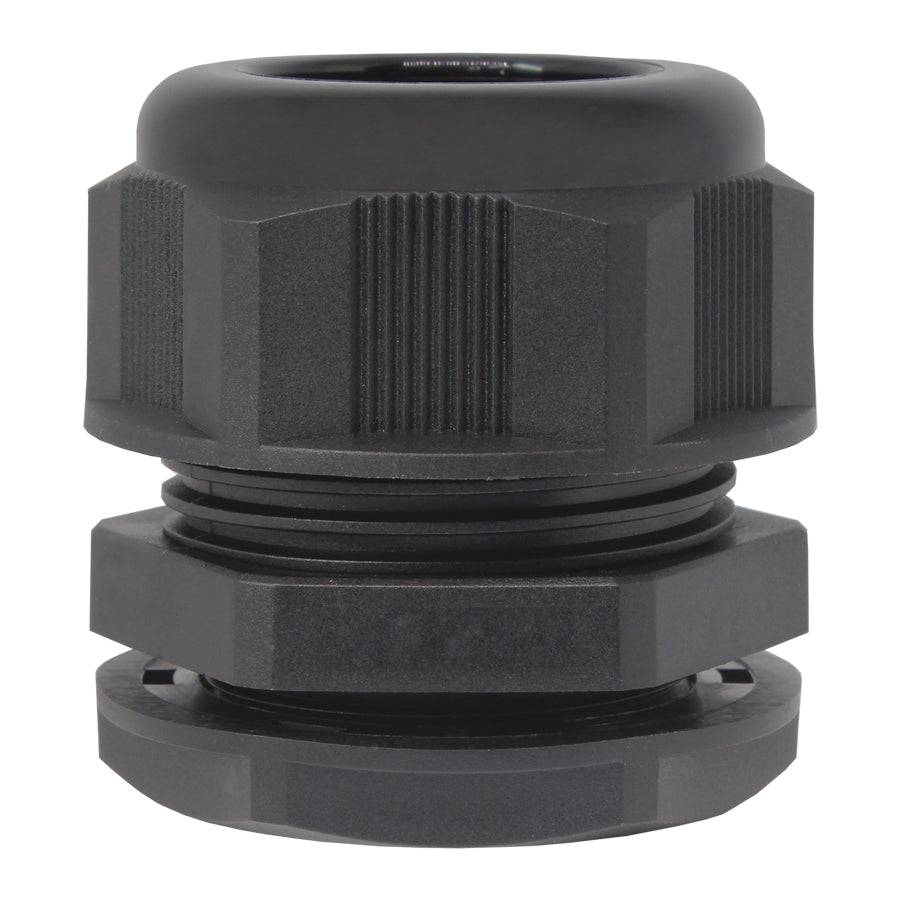

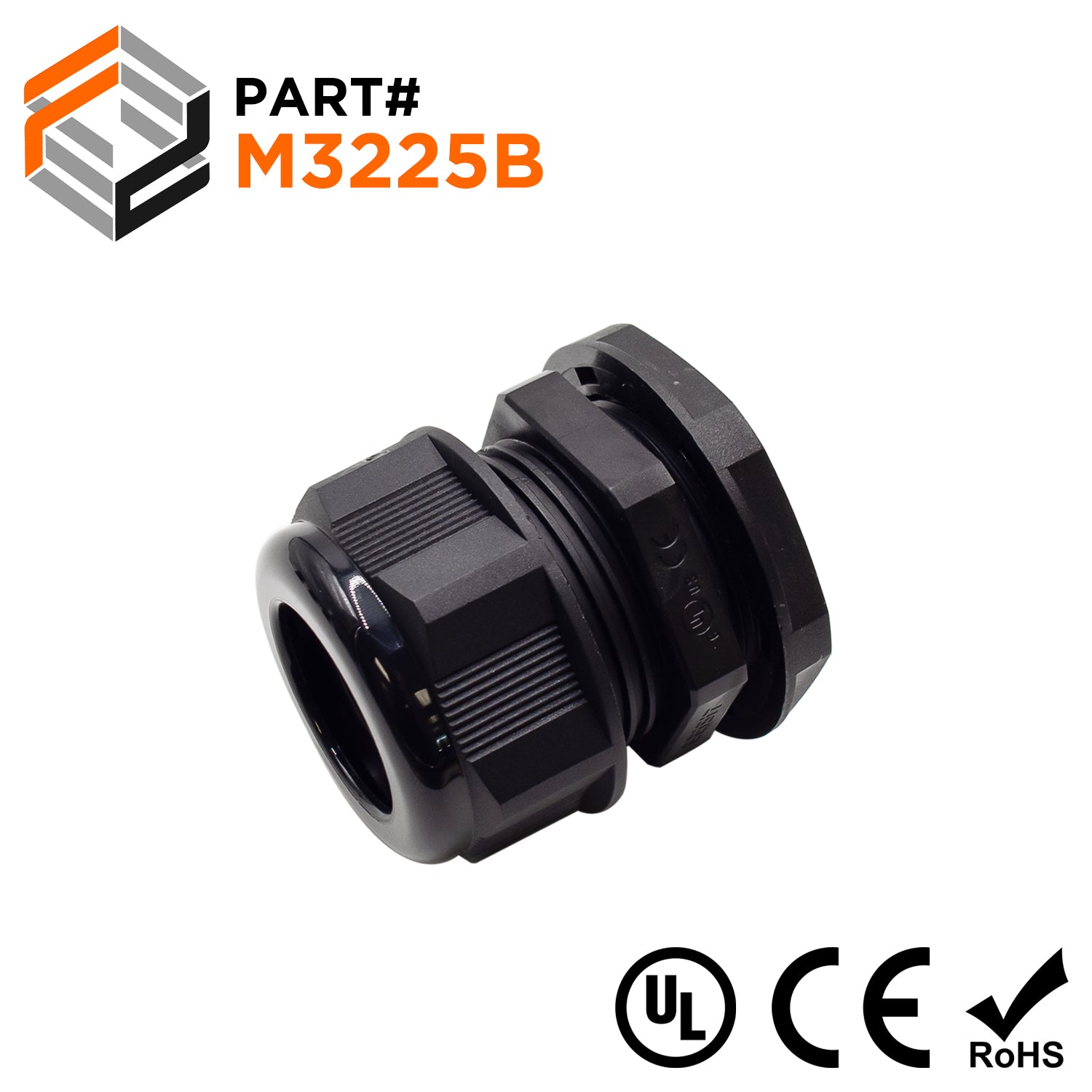

M32 x 1.5mm Metric Thread Nylon Cable Gland, Black, Range: 11/16" to 1", UL Recognized, IP68 - M3225B
NYLON CABLE GLANDS: NPT THREAD
Metric cable glands are useful when creating water-tight pass-throughs for cables. They protect and secure cables through their internal seals. Ferrules Direct offers a wide range of Metric sizes in a variety of materials and colors. These glands are easy to use and built to handle tough conditions.
- Lock-nut Included ✓
- Inner Gland Cable Seal Included ✓
- O-Ring Included ✓
- UL Recognized ✓
- IP68 Rating ✓
DIMENSIONS & FEATURES:
Thread Size: | M32x1.5 |
Cable Range: | 11/16" to 1" (18-25mm) |
Color: | Black |
Material: | Nylon 6/6 (Polyamide) |
C1: | 32mm (1.26") |
C2: | 25.7mm (1.01") |
D2: | 25.7mm (1.01") |
B1: | 25.4mm (1.00") |
L1: | 11.4mm (0.45") |
L2: | 33.3mm (1.31") |
L3: | 23.3mm (0.92") |
Flammability Rating: | UL 94 V-2 |
Ingress Protection: | IP68 |
Hermetic Seal: | NBR (Nitrile Rubber) |
O-Ring: | EPDM |
Working Temperature: | -40°F to 221°F (-40°C to 105°C) |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
PRODUCT DRAWING:
![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/Updated_Gland_Drawing.jpg?v=1576860752)
ADDITIONAL INFO:
A cable gland (more often known in the U.S. as a cord grip, cable strain relief, cable connector or cable fitting) is a device designed to attach and secure the end of an electrical cable to the equipment. A cable gland provides strain-relief and connects by a means suitable for the type and description of cable for which it is designed—including provision for making electrical connection to the armor or braid and lead or aluminum sheath of the cable, if any. Cable glands may also be used for sealing cables passing through bulkheads or gland plates. Cable glands are mostly used for cables with diameters between 1 mm and 75 mm.
