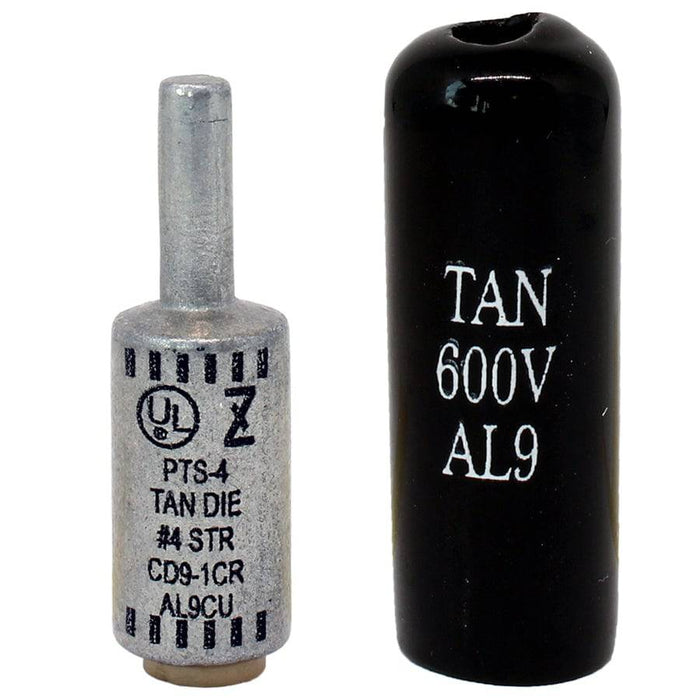

ZPTS4 - Aluminum Compression Pin Adapter - 4 AWG - Tan
Original price
$8.11
-
Original price
$8.11
Original price
$8.11
$8.11
-
$8.11
Current price
$8.11
SKU ZPTS4
Availability:
in stock, ready to be shipped
ZPTS/ZPTO compression pin adapters are made of aluminum with an electro tin-plated finish for enhanced durability. They are designed for use with molded case circuit breakers, panel board equipment, and meter sockets. They provide reliable termination of both aluminum and copper conductors while eliminating all possible bi-metallic corrosion. Includes oxide inhibitor compound.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 4 AWG |
| Color: | Tan |
| L2: | 17.3mm (0.68") |
| D: | 6.1mm (0.24") |
| L1: | 29.7mm (1.17") |
| J: | 47.0mm (1.85") |
| C: | 6.0mm (0.24") |
| B: | 27.9mm (1.10") |
| Terminal Material: | Tin-Plated Aluminum |
| Temperature Rating: | 90oC |
| Voltage Rating: | 600V - 35KV |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
