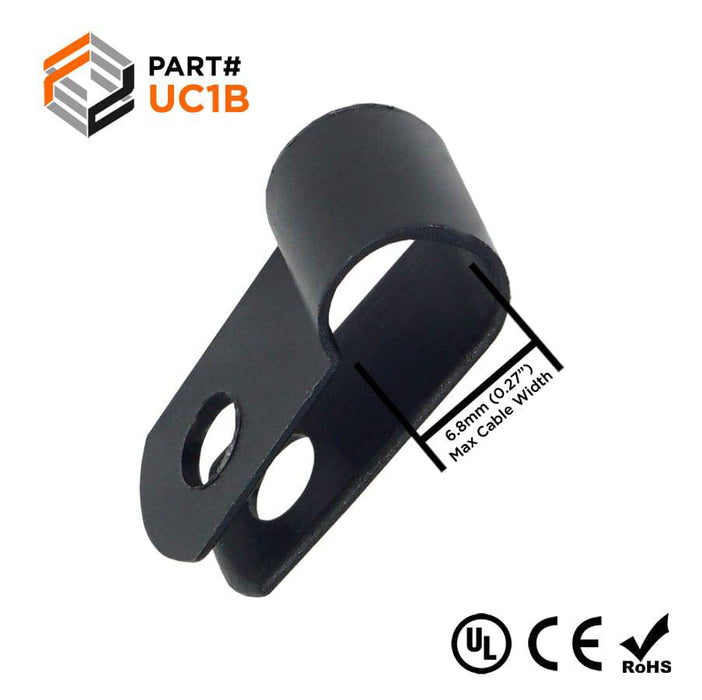

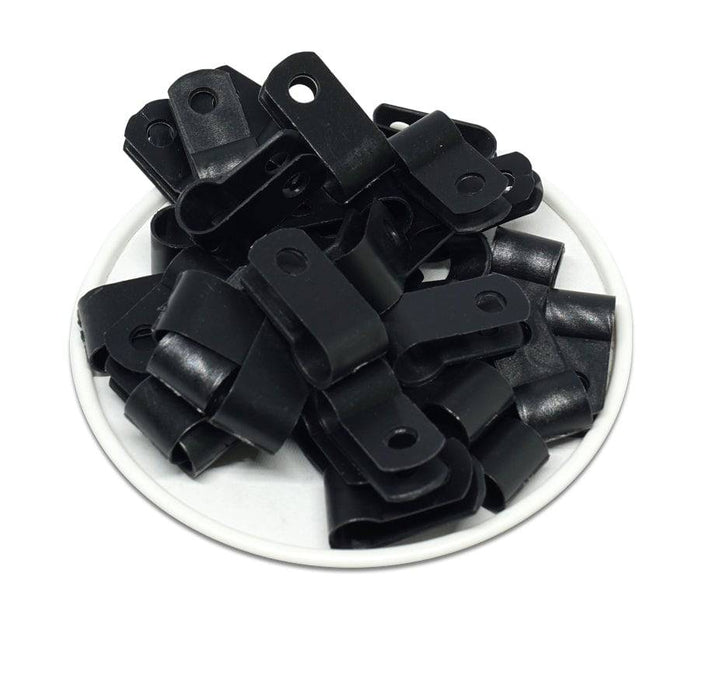

UC1B - 1/4" Cable Clamps Nylon R-Type Cable Wire & Cord Clamps, Color: Black - 100 Pieces
NYLON CABLE CLAMPS
✔CABLE ORGANIZER: Fantastic solution for routing cables. These work efficiently to organize and transform any cabling project to a neat and organized state.
✔DURABLE MATERIAL: Made of high quality nylon plastic: corrosion resistant, cold resistant, UV resistant (black color only), fire rated 94V-2.
✔EASY TO USE: These have an R-Type shape that has a 1/4" closed diameter, simply route your cables through the clamp and affix the clamp to a surface using a screw.
✔WIDE USE CASES: These parts can be used for the management of various electrical cables. They are commonly used in electrical applications, air conditioning applications, electrical boxes, computer wiring, etc. These can hold single wires or several wires according to the wire diameter.
DIMENSIONS & FEATURES:
| Bundle Diameter (D): | 1/4" (6.4mm) |
| Size: | 0.79" x 0.40" (20mm x 10.1mm) |
| Color: | Black |
| A: | 4.6mm (0.18") |
| B: | 10.4mm (0.41") |
| C: | 10.1mm (0.40") |
| E: | 20mm (0.79") |
| F: | 1.10mm (0.04") |
| Material: | UL Approved 94UV-2 Nylon 6/6 |
| UV Resistant: | Yes |
| Service Temperature: | -40°F to 185°F (-40°C to 85°F) |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
