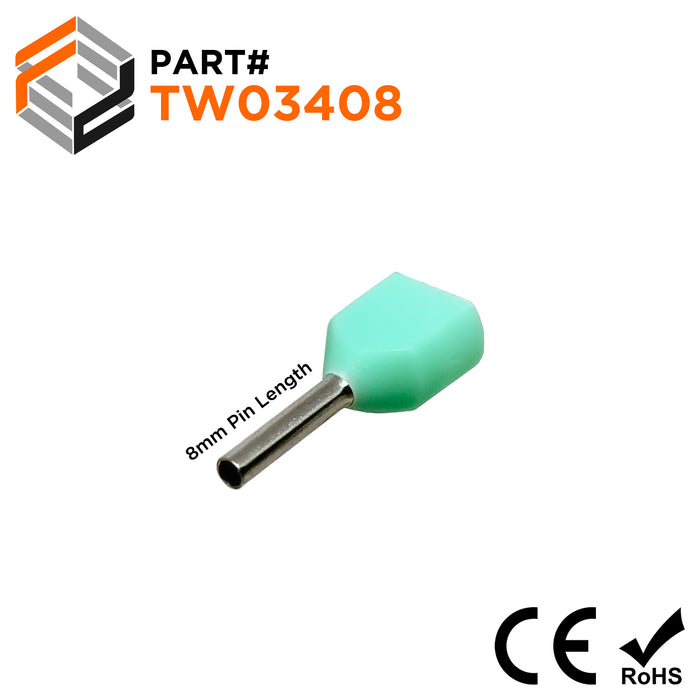

TW03408 - 2x22 AWG (8mm Pin) Twin Wire Ferrules - Turquoise
Original price
$0.00
-
Original price
$17.02
Original price
$17.02
$0.00
-
$17.02
Current price
$17.02
SKU TW03408
Availability:
in stock, ready to be shipped
Availability:
Out of stock
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
Altech Corp:FTI2208
GE Renewable Energy: 104W4400P023
WAGO:216-1519
Dimensions & Features:
| Wire Size: | 2x22 AWG |
| Color: | Turquoise |
| E: | 2.5mm (0.09") |
| D1: | 1.2mm (0.04") |
| D2: | 4.9mm (0.19") |
| L1: | 14.7mm (0.57") |
| L2: | 8.0mm (0.32") |
| S1: | 0.20mm (0.01") |
| Material: | Tin Plated Copper |
| Max Electrical Rating: | 105°C (221°F) 600 Volts |
| Max Electrical Current: | 12A |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:Altech Corp:FTI2208
GE Renewable Energy: 104W4400P023
WAGO:216-1519
Documents
Click to view product spec sheet:
