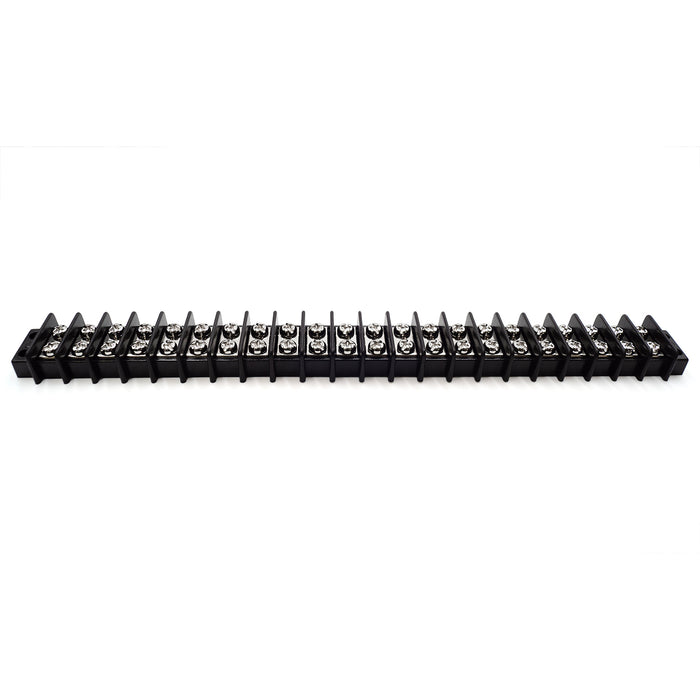

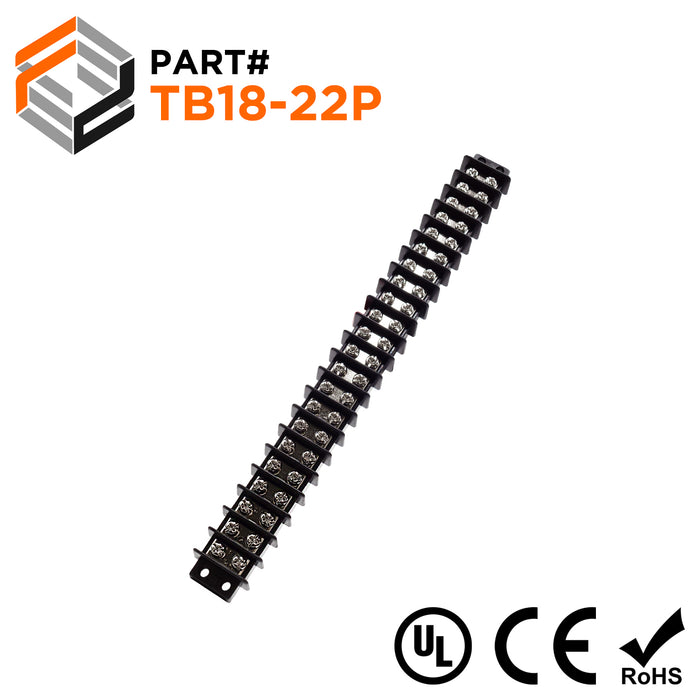

Barrier Strip Terminal Block, Terminal Strip, 22 Pole, Double Row, 20A, 300V, UL Approved - TB18-22P
Original price
$11.44
-
Original price
$11.44
Original price
$11.44
$11.44
-
$11.44
Current price
$11.44
SKU TB18-22P
Availability:
in stock, ready to be shipped
Terminal strips are used to fasten or terminate wire. This can be done by placing bare/exposed wire under the screws/poles and screwing them down. However, use of a wire ferrule or fork/spade terminal is encouraged to prevent the wire from fraying.
Dimensions & Features:
Product Drawing:
Dimensions & Features:
Number of Poles: | 22 Poles |
Pitch: | 11.1mm (0.44") |
A: | 255.6mm (10.06") |
B: | 263.7mm (10.38") |
Material: | Thermoplastic UL94-V0 |
Electrical Rating: | 300 Volts |
Amp Rating: | 20AMP |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/TB18_Drawing_600x600.jpg?v=1594412608)
