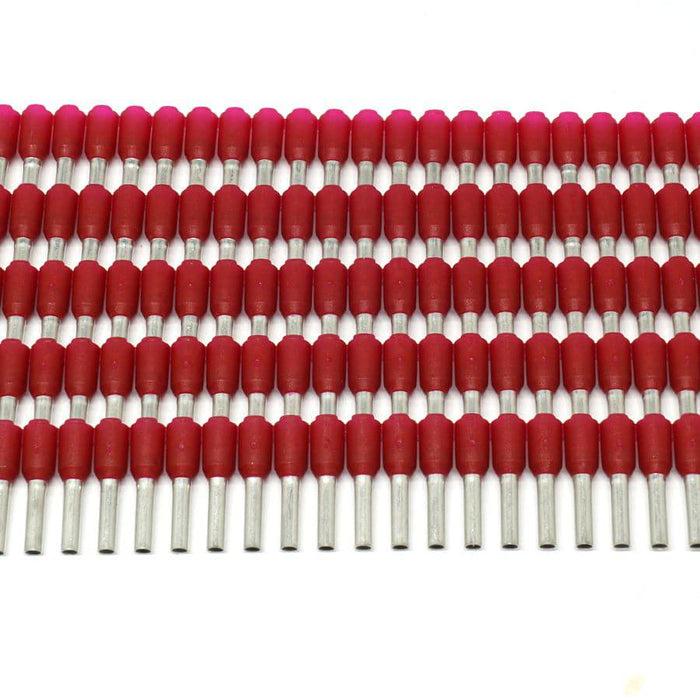

SW15008 - Strips of Ferrules - 16 AWG - Red - 500pcs
Original price
$18.90
-
Original price
$18.90
Original price
$18.90
$18.90
-
$18.90
Current price
$18.90
SKU SW15008
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
ABB: 30446107
ACI: 107664
Altech Corp: 2848.0 2208.0 FID1210
American Electrical: 11101040 11102040
AUTOMATION DIRECT: BM-00508
Eclipse: 701-036
Elecdirect: FER-12-10D
Greenlee: 174/GR
McMaster-Carr: 7950K69 7950K31
Panduit: FSD81-10-D
Phoenix Contact: 3200535
SPC Technology: SPC4523 84N2057
TE Connectivity: 1-966067-9
Thomas Betts: F2038
Tyco AMP: 3-966 066-0
WAGO: 216-207
Weidmuller: 9026010000 9019190000
Wieland: 06.600.2727.0
ZF: V3AE0055
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 16 AWG |
| Color: | Red |
| Material: | Tin Plated Copper |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 18A |
| L1: | 14.5mm (0.57") |
| L2: | 8.0mm (0.31") |
| D: | 2mm (0.07") |
| D1: | 1.7mm (0.06") |
| D2: | 3.5mm (0.13") |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:ABB: 30446107
ACI: 107664
Altech Corp: 2848.0 2208.0 FID1210
American Electrical: 11101040 11102040
AUTOMATION DIRECT: BM-00508
Eclipse: 701-036
Elecdirect: FER-12-10D
Greenlee: 174/GR
McMaster-Carr: 7950K69 7950K31
Panduit: FSD81-10-D
Phoenix Contact: 3200535
SPC Technology: SPC4523 84N2057
TE Connectivity: 1-966067-9
Thomas Betts: F2038
Tyco AMP: 3-966 066-0
WAGO: 216-207
Weidmuller: 9026010000 9019190000
Wieland: 06.600.2727.0
ZF: V3AE0055
Documents
Click to view product spec sheet:
