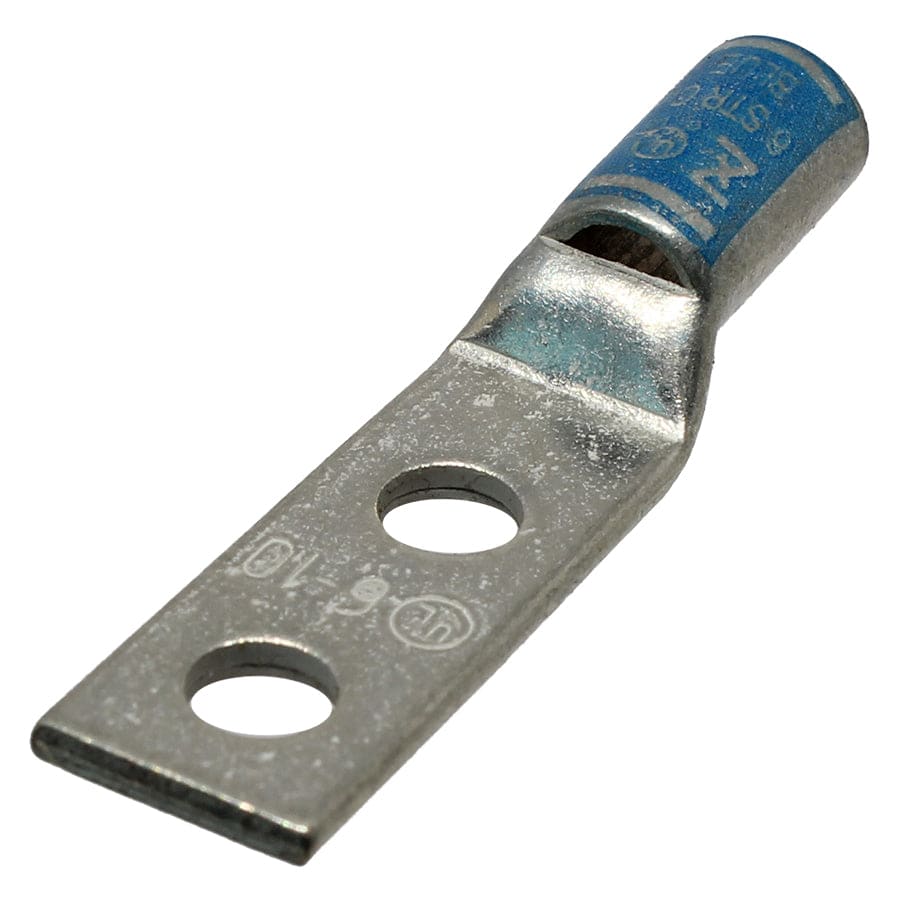

ST610 - 6 AWG Compression Lug - #10 Stud Size
Original price
$0.77
-
Original price
$0.77
Original price
$0.77
$0.77
-
$0.77
Current price
$0.77
SKU ST610
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 6 AWG |
| Stud Size: | #10 Stud |
| Color: | Blue |
| L: | 44.8mm (1.77") |
| L1: | 27.9mm (1.10") |
| L2: | 12.7mm (0.50") |
| D: | 11.4mm (0.45") |
| D1: | 7.92mm (0.31") |
| D2: | 5.89mm (0.23") |
| B: | 13.7mm (0.54") |
| E: | 5.58mm (0.22") |
| F: | 1.93mm (0.08") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35KV |
| Max Amp Rating: | 65A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
