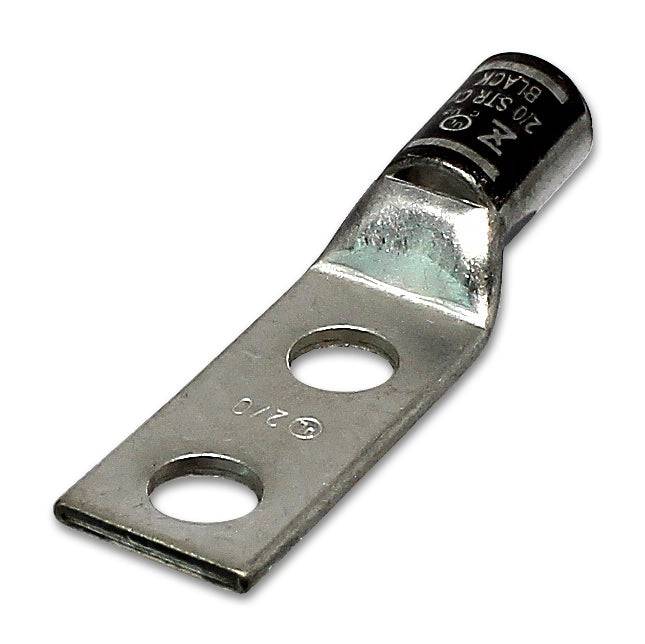

ST2014B - 2/0 AWG Compression Lug - 1/4" Stud Size
Original price
$2.73
-
Original price
$2.73
Original price
$2.73
$2.73
-
$2.73
Current price
$2.73
SKU ST2014B
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 2/0 AWG |
| Color: | Black |
| L: | 71.5mm (2.81") |
| L1: | 43.8mm (1.72") |
| L2: | 25.4mm (1.00") |
| D: | 20.8mm (0.82") |
| D1: | 14.2mm (0.56") |
| D2: | 11.6mm (0.46") |
| B: | 21.3mm (0.84") |
| E: | 7.1mm (0.28") |
| F: | 2.5mm (0.09") |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 1/4" |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35KV |
| Max Amp Rating: | 265A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
