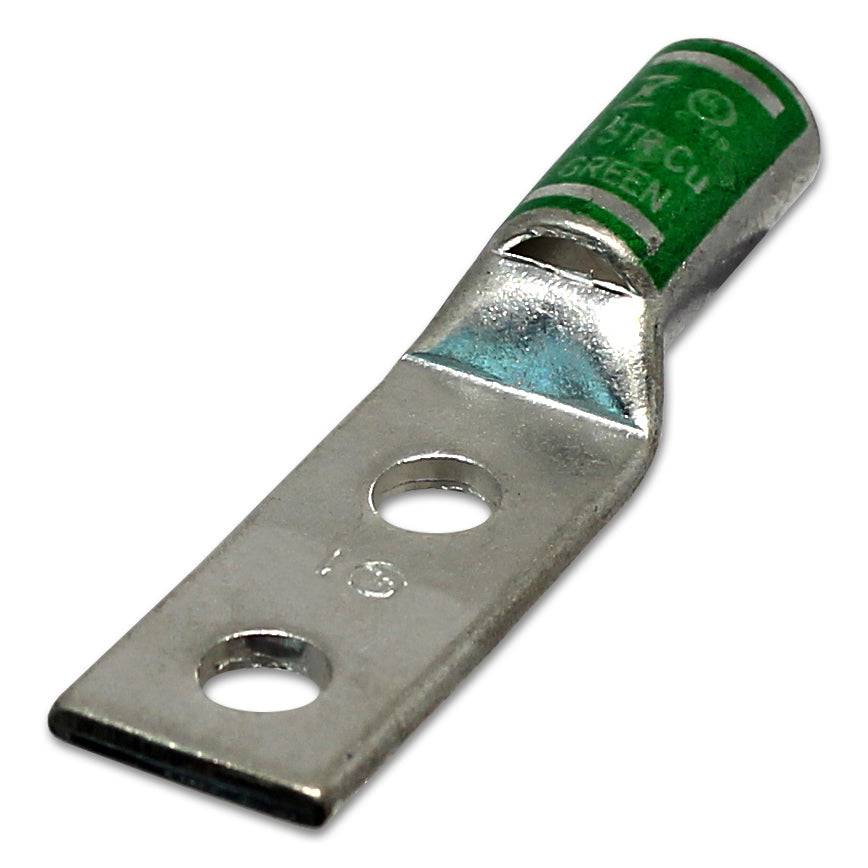

ST114A - 1AWG Compression Lug - 1/4" Stud Size
Original price
$1.93
-
Original price
$1.93
Original price
$1.93
$1.93
-
$1.93
Current price
$1.93
SKU ST114A
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 1 AWG |
| Color: | Green |
| L: | 62.5mm (2.46") |
| L1: | 37.6mm (1.48") |
| L2: | 19.0mm (0.75") |
| D: | 16.7mm (0.66") |
| D1: | 11.6mm (0.46") |
| D2: | 9.1mm (0.36") |
| B: | 20.3mm (0.80") |
| E: | 7.1mm (0.28") |
| F: | 2.5mm (0.10") |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 1/4" |
| Temperature Rating: | 90oC |
| Voltage Rating: | 35KV |
| Max Amp Rating: | 85 Amps |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
