SS1614-100J - Heat Shrink Solder Sleeves - 16-14 AWG - Blue - 100pcs
Original price
$12.10
-
Original price
$12.10
Original price
$12.10
-
Original price
$12.10
Original price
Current price
$12.10
$12.10
-
$12.10
Current price
$12.10
Availability:
in stock, ready to be shipped

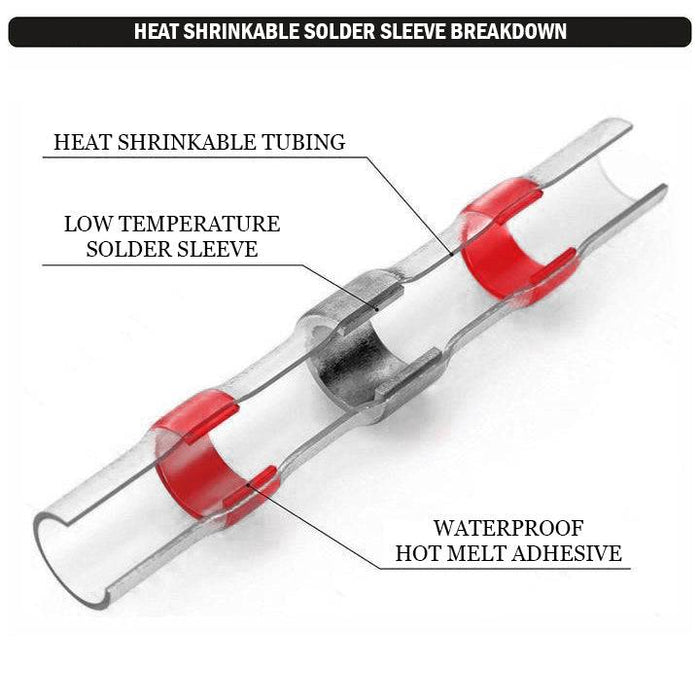

Heat shrink soldersleeves provide sealed protection against environmental extremities. They insulate, seal and protect joints from physical abuse, abrasion, water, salt, and other corrosive elements.
Dimensions & Features:

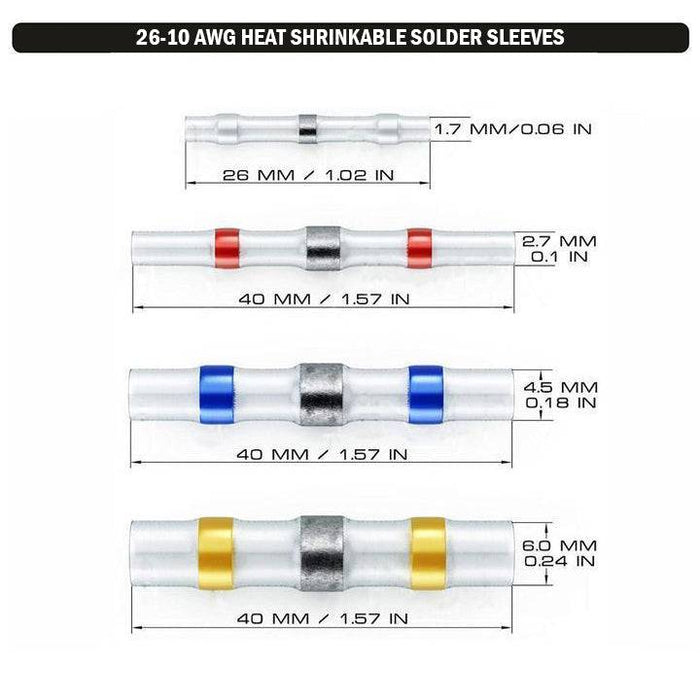

Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Color: | Blue |
| L: | 40mm ± 1.5 (1.57") |
| D: | 4.5mm (0.18") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Polyolefin |
| Temperature Rating: | -55°C to 125°C |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!
