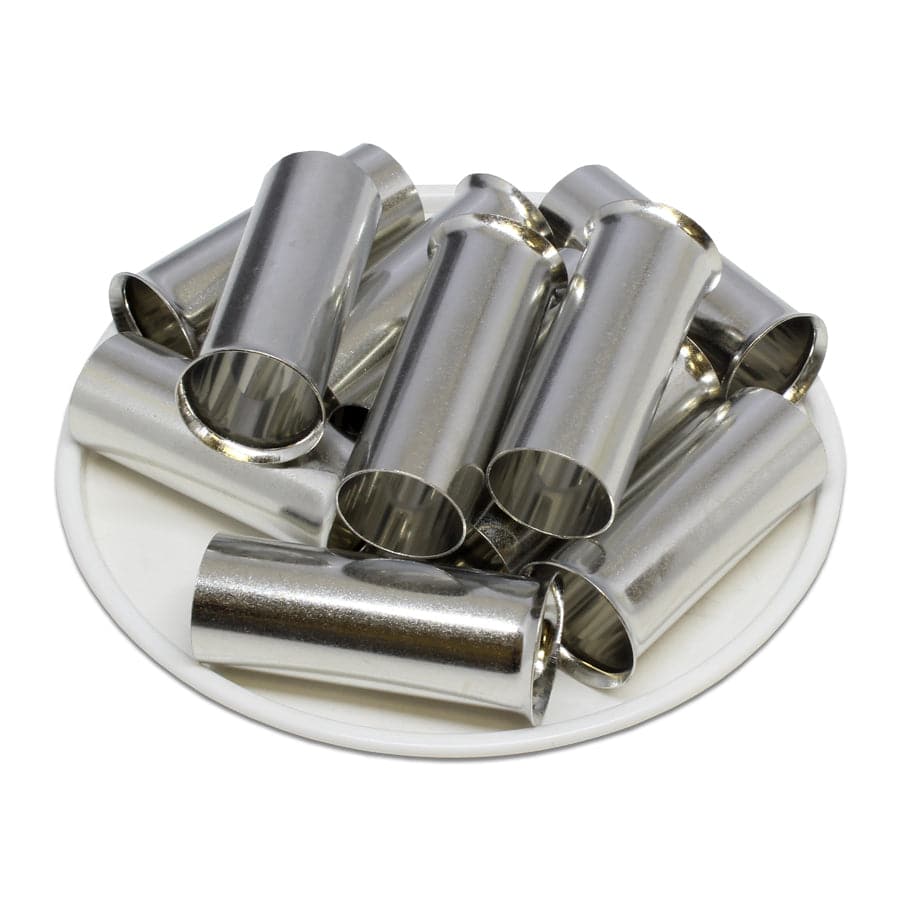

SF670032 - True 2/0 AWG (32mm Pin) Non Insulated Ferrules
Original price
$31.05
-
Original price
$31.05
Original price
$31.05
$31.05
-
$31.05
Current price
$31.05
SKU SF670032
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
None
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | True 2/0 AWG |
| L1: | 32mm (1.26") |
| D: | 12.2mm (0.48") |
| D1: | 11.6mm (0.46") |
| D2: | 14.5mm (0.57") |
| Material: | Tin Plated Copper |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 265A |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:
