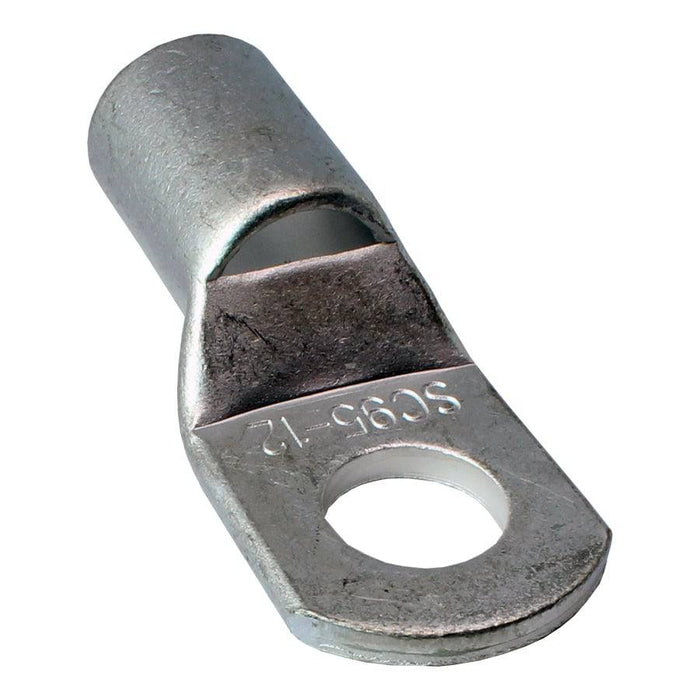

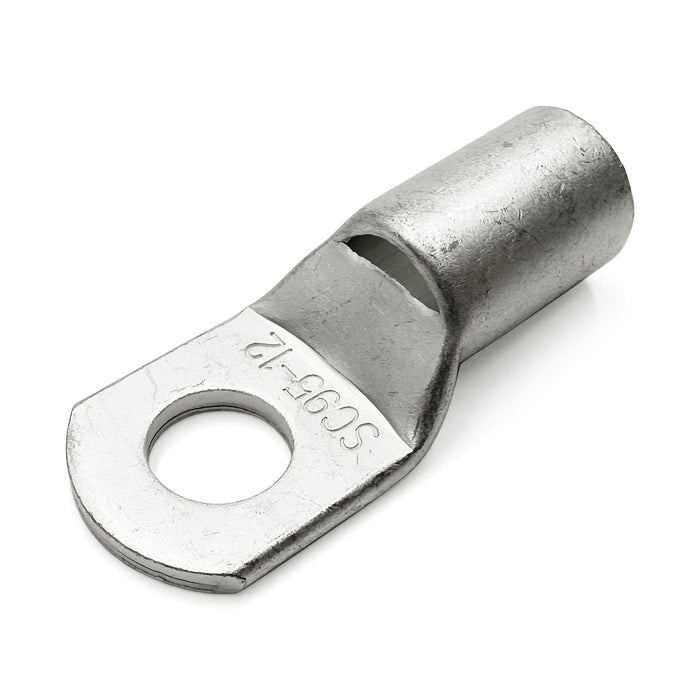

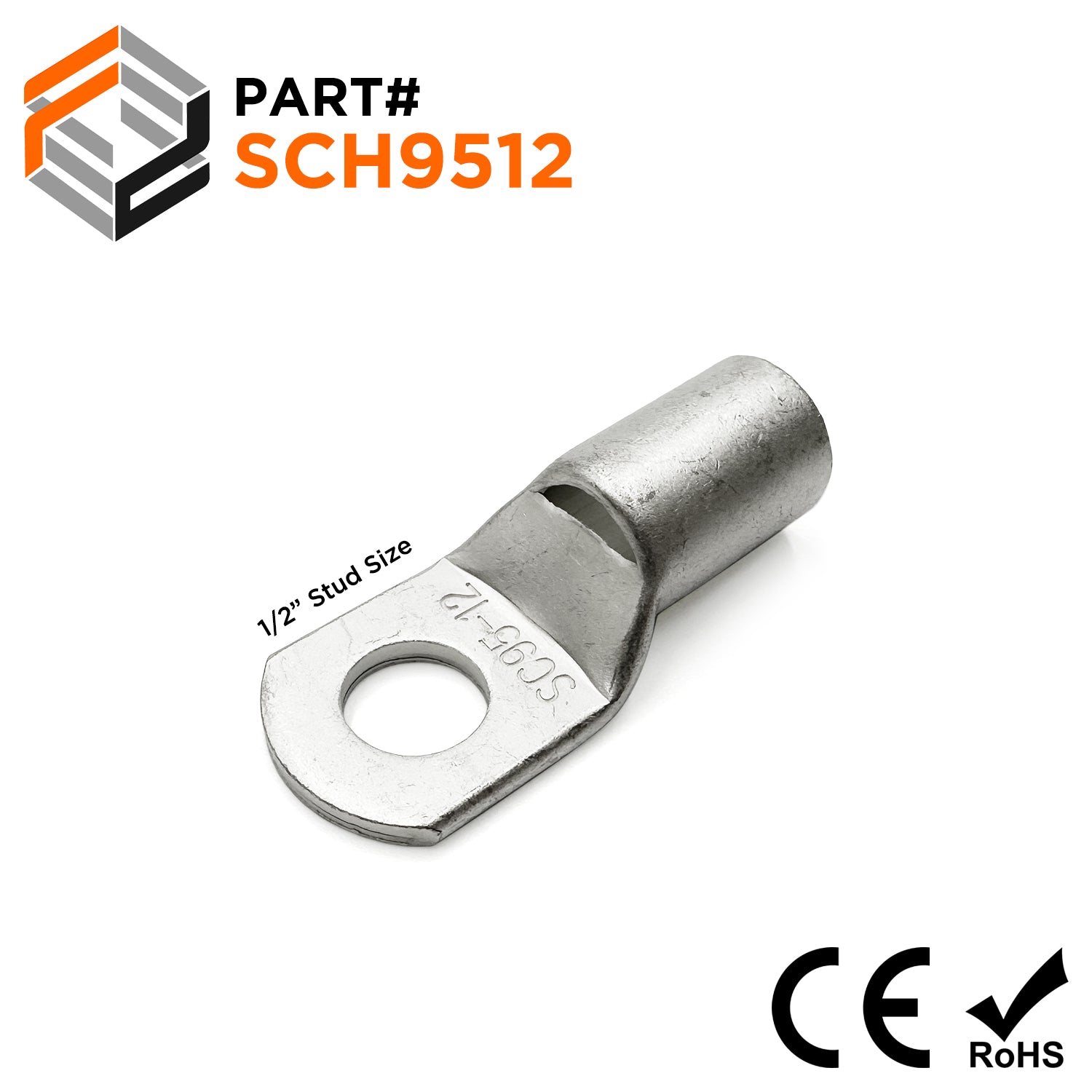

SCH9512 - Non Insulated Tubular Ring Lugs - 3/0 AWG
Original price
$22.93
-
Original price
$22.93
Original price
$22.93
$22.93
-
$22.93
Current price
$22.93
SKU SCH9512
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
| Wire Size: | 3/0 AWG |
| F: | 23.5mm (0.93") |
| W: | 24.8mm (0.98") |
| L: | 57mm (2.24") |
| D: | 17.0mm (0.67") |
| D1: | 13.7mm (0.54") |
| D2: | 13.0mm (0.51") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | None |
| Stud Size: | 1/2" |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| Maximum Amp Ordering: | 200 Amps |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None:
Documents
Click to view product spec sheet:
