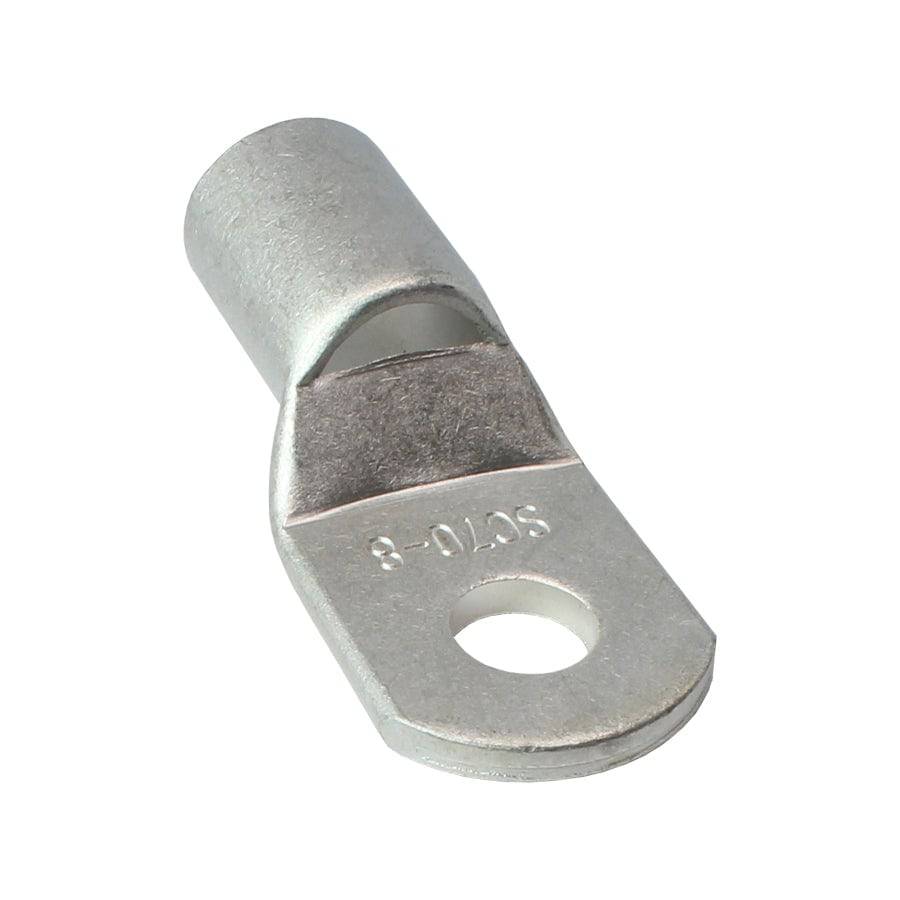

SCH708 - Non Insulated Tubular Ring Lugs - 2/0 AWG
Original price
$14.82
-
Original price
$14.82
Original price
$14.82
$14.82
-
$14.82
Current price
$14.82
SKU SCH708
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
Wire Size: | 2/0 AWG |
F: | 19.5mm (0.77") |
W: | 21.0mm (0.83") |
L: | 48.5mm (1.91") |
D: | 14.5mm (0.57") |
D1: | 11.5mm (0.45") |
D2: | 8.5mm (0.33") |
Terminal Material: | Tin-Plated Copper |
Insulation Material: | None |
Stud Size: | 5/16" |
Temperature Rating: | 75oC |
Voltage Rating: | 600 Volts |
Maximum Amp Ordering: | 175 Amps |
UL Recogonized: | No |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/SCH_Drawing.png?v=1588868857)
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/Spec_Sheet_Coming_Soon_Graphic.jpg?v=1582127608)
