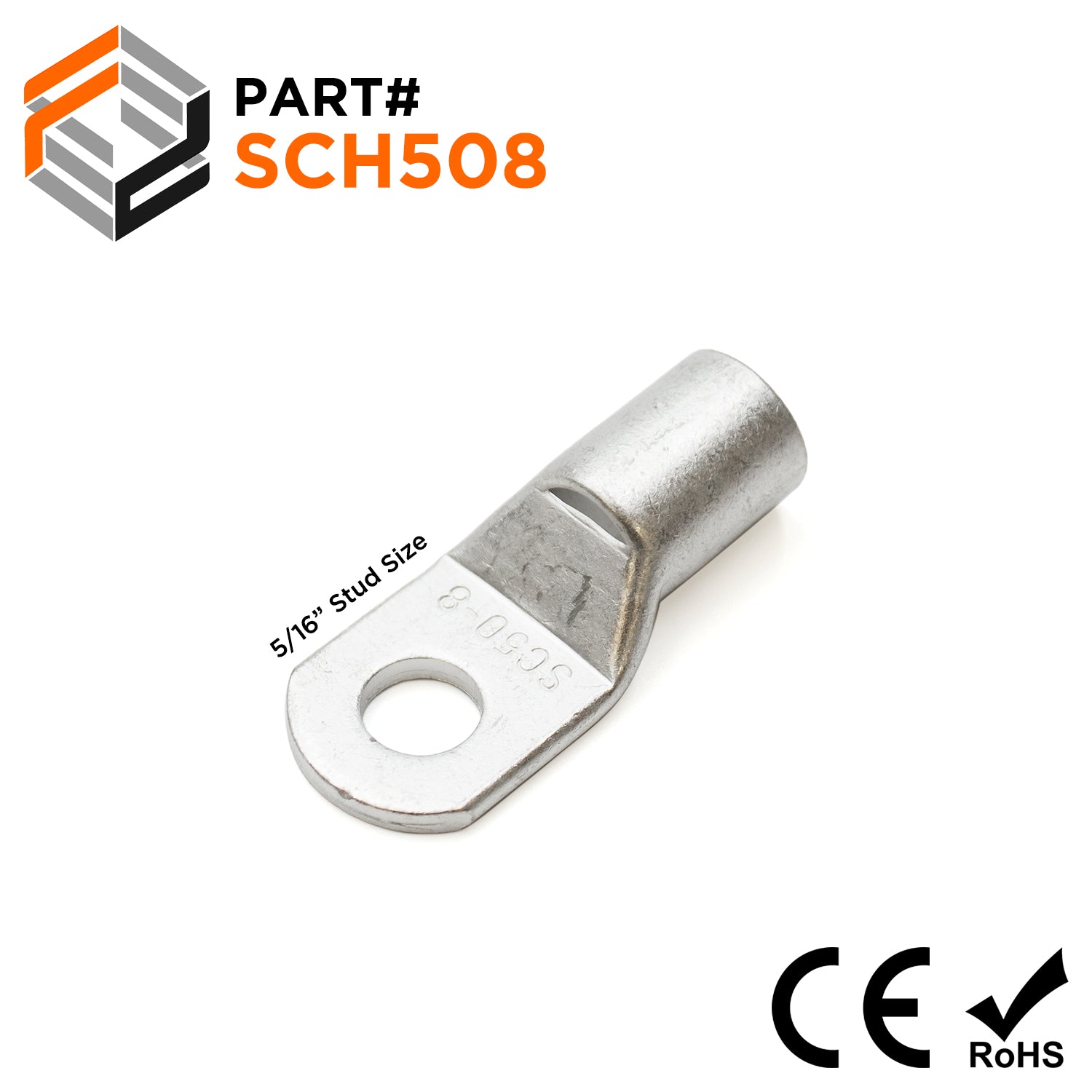

SCH508 - Non Insulated Tubular Ring Lugs - 1AWG - 1/0 AWG
Original price
$0.00
-
Original price
$13.42
Original price
$13.42
$0.00
-
$13.42
Current price
$13.42
SKU SCH508
Availability:
in stock, ready to be shipped
Availability:
Out of stock

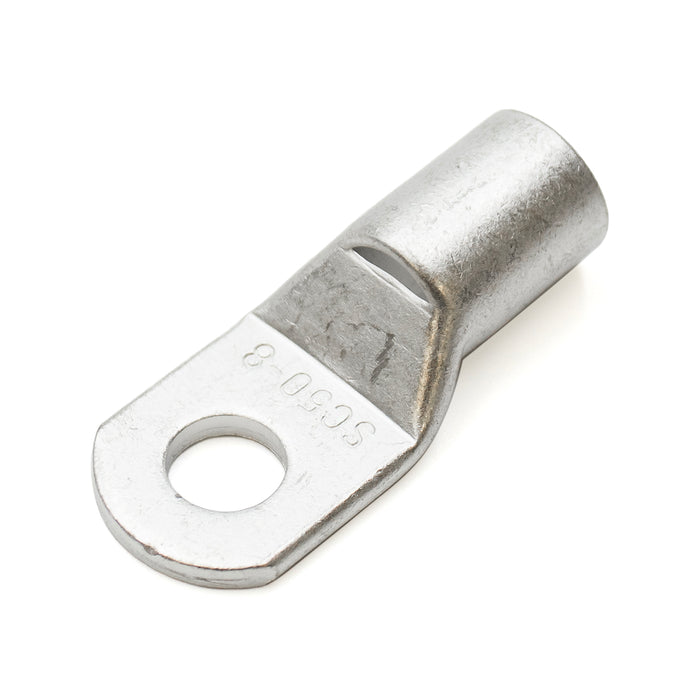

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
| Wire Size: | 1-1/0 AWG |
| F: | 17.0mm (0.67") |
| W: | 18.1mm (0.71") |
| L: | 42.5mm (1.67") |
| D: | 12.5mm (0.59") |
| D1: | 9.8mm (0.39") |
| D2: | 8.5mm (0.33") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | None |
| Stud Size: | 5/16" |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| Maximum Amp Ordering: | 150 Amps |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None:
Documents
Click to view product spec sheet:
