SCH25-4 - Non Insulated Tubular Ring Lugs - 14 AWG
Original price
$11.94
-
Original price
$11.94
Original price
$11.94
$11.94
-
$11.94
Current price
$11.94
SKU SCH25-4
Availability:
in stock, ready to be shipped

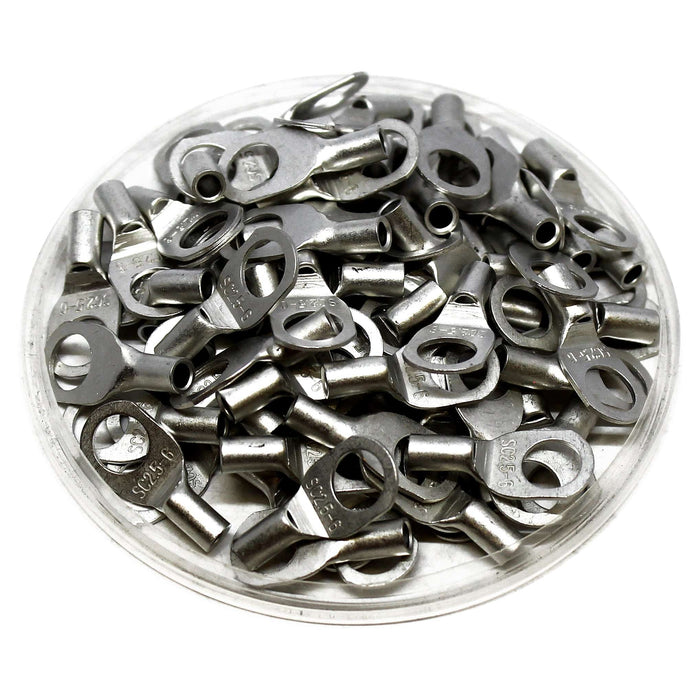

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 14 AWG |
| F: | 7.0mm (0.28") |
| W: | 8.0mm (0.31") |
| L: | 19.0mm (0.79") |
| D: | 4.0mm (0.16") |
| D1: | 2.8mm (0.11") |
| D2: | 4.3mm (0.17") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | None |
| Stud Size: | #8 |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| Maximum Amp Ordering: | 15 Amps |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
