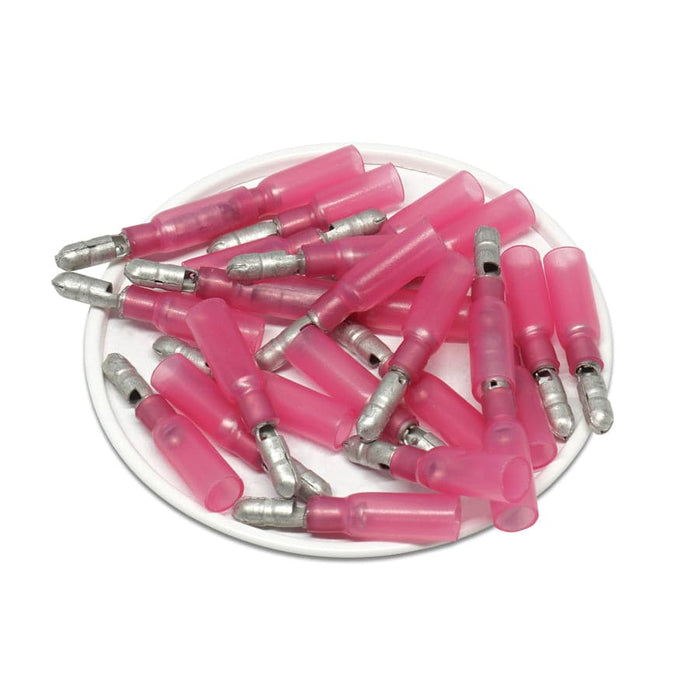

SBTM100-4 - Polyethylene Heat Shrink Male Bullet - 4mm - 22 -18AWG - Red
Original price
$6.76
-
Original price
$6.76
Original price
$6.76
$6.76
-
$6.76
Current price
$6.76
SKU SBTM100-4
Availability:
in stock, ready to be shipped
Heat shrink terminals provide sealed protection against environmental extremities. They insulate, seal and protect joints from physical abuse, abrasion, water, salt, and other corrosive elements.
Product Drawing:
None:
| Wire Range: | 22-16 AWG |
| D: | 0.19" (4.8mm) |
| D1: | 0.06" (1.6mm) |
| B: | 0.16" (4.0mm) |
| E: | 0.87" (21.0mm) |
| L: | 1.22" (31.0mm) |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Polythylene |
| Color: | Red |
| Temperature Rating: | -55oC to 125oC |
Product Drawing:
Cross References
Cross Reference Parts:None:
