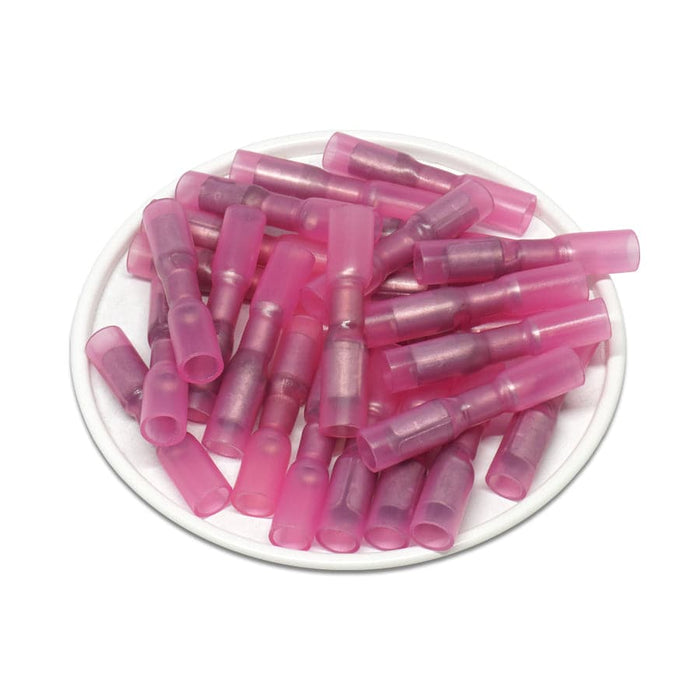

22 to 16 AWG Heat Shrink Female Bullet Connectors, 0.156" Tab, Polyethylene, 25 Pieces - SBTF100-4
Save 62%
Original price
$13.71
Original price
$13.71
-
Original price
$13.71
Original price
$13.71
Current price
$5.21
$5.21
-
$5.21
Current price
$5.21
SKU SBTF100-4
Availability:
in stock, ready to be shipped

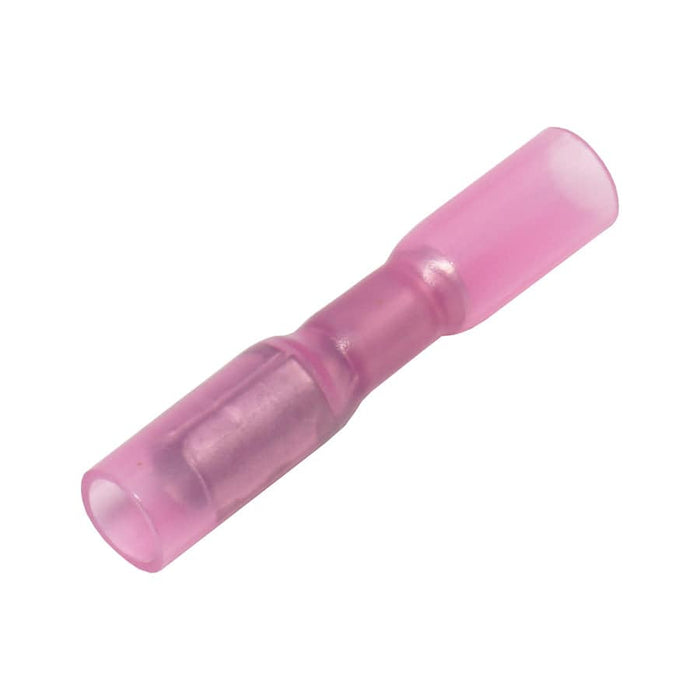

HEAT SHRINKABLE BULLET CONNECTORS
Heat shrinkable insulated bullet connectors are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.
- 3:1 Shrink Ratio ✓
- Excellent Puncture Resistance ✓
- High Elasticity ✓
- Waterproof ✓
- Excellent conductivity ✓
| Wire Range: | 22 to 16 AWG |
| Tab Size: | 0.156" (4.0mm) |
| Color: | Red |
| Insulation Material: | Polyethylene |
| Terminal Material: | Tin-plated Copper |
| Shrink Ratio: | 3:1 |
| Operating Temperature: | -67oF to 257oF (-55oC to 125oC) |
| Minimum Shrink Ratio: | 176oF (55oC) |
| Minimum Fully Recovery Temperature: | 266oF (130oC) |
| D: | 0.19" (4.8mm) |
| D1: | 0.06" (1.6mm) |
| W: | 0.156" (4.0mm) |
| B: | 0.87" (21.0mm) |
| L: | 0.26" (32.0mm) |
| Temperature Rating: |
-67oF to 257oF (-55oC to 125oC) |
| RoHS Compliant: | Yes |
| CE Certified: | Yes |
| UL Approved: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None:
Documents
Click to view product spec sheet:
