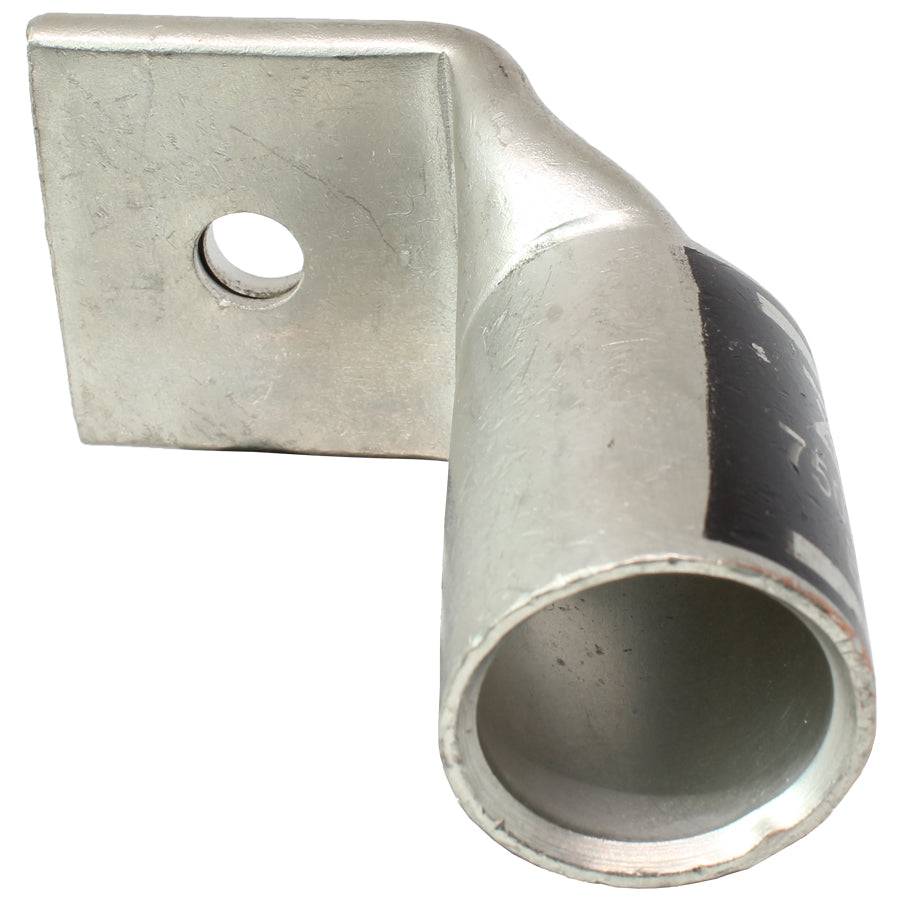

SBF75038 - 90 Degree Short Barrel Compression Lug - 750 MCM - 3/8" Stud
Original price
$34.71
-
Original price
$34.71
Original price
$34.71
$34.71
-
$34.71
Current price
$34.71
SKU SBF75038
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 750MCM |
| Color: | Black |
| C: | 26.8mm (1.06") |
| E: | 10.4mm (0.41") |
| D: | 48.3mm (1.90") |
| G: | 19.8mm (0.78") |
| B: | 44.5mm (1.75") |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 3/8" Stud |
| Temperature Rating: | 90oC |
| Voltage Rating: | 35 KV |
| Maximum Ampere Rating: | 475 Amps |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
