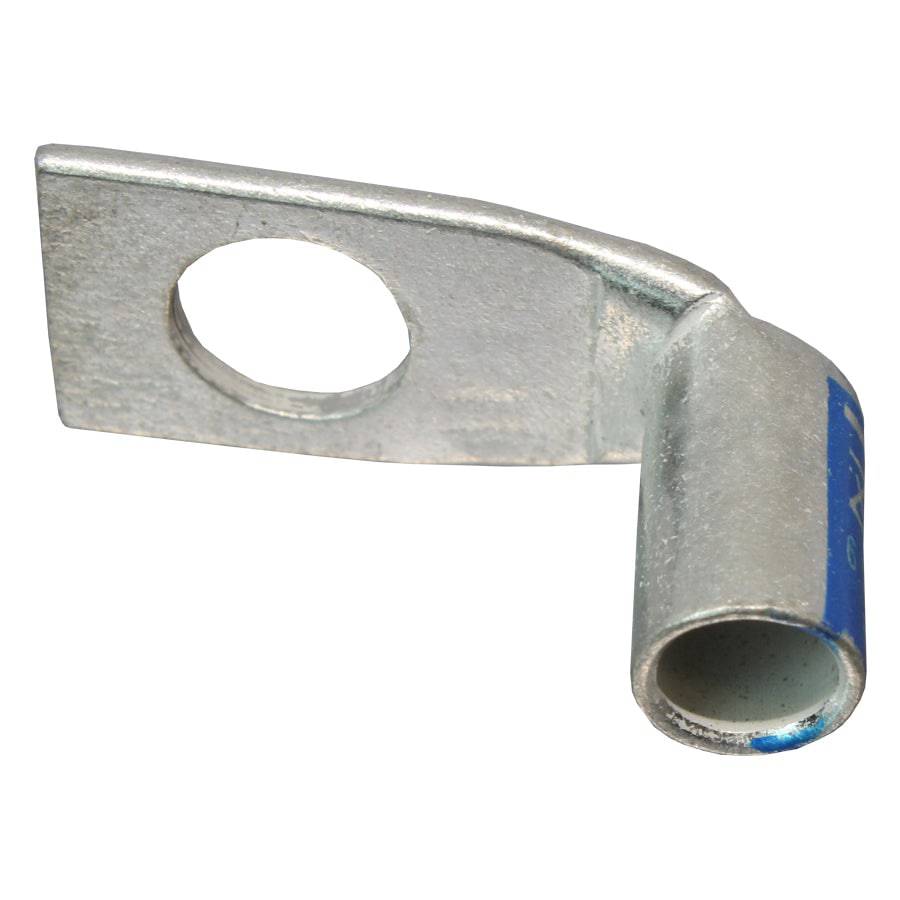

SBF6516 - 90 Degree Short Barrel Compression Lug - 6 AWG - 5/16" Stud
Original price
$0.73
-
Original price
$0.73
Original price
$0.73
$0.73
-
$0.73
Current price
$0.73
SKU SBF6516
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
| Wire Size: | 6 AWG |
| Stud Size: | 5/16" Stud |
| Color: | Blue |
| A: | 7.8mm (0.31") |
| B: | 13.7mm (0.54") |
| C: | 5.8mm (0.26") |
| D: | 14.0mm (0.55") |
| E: | 8.7mm (0.345") |
| G: | 8.9mm (0.35") |
| Material: | Tin Plated Copper |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Temperature Rating: | 90°C |
| Max Electrical Rating: | 35 KV |
| Max Electrical Current: | 65A |
Product Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
