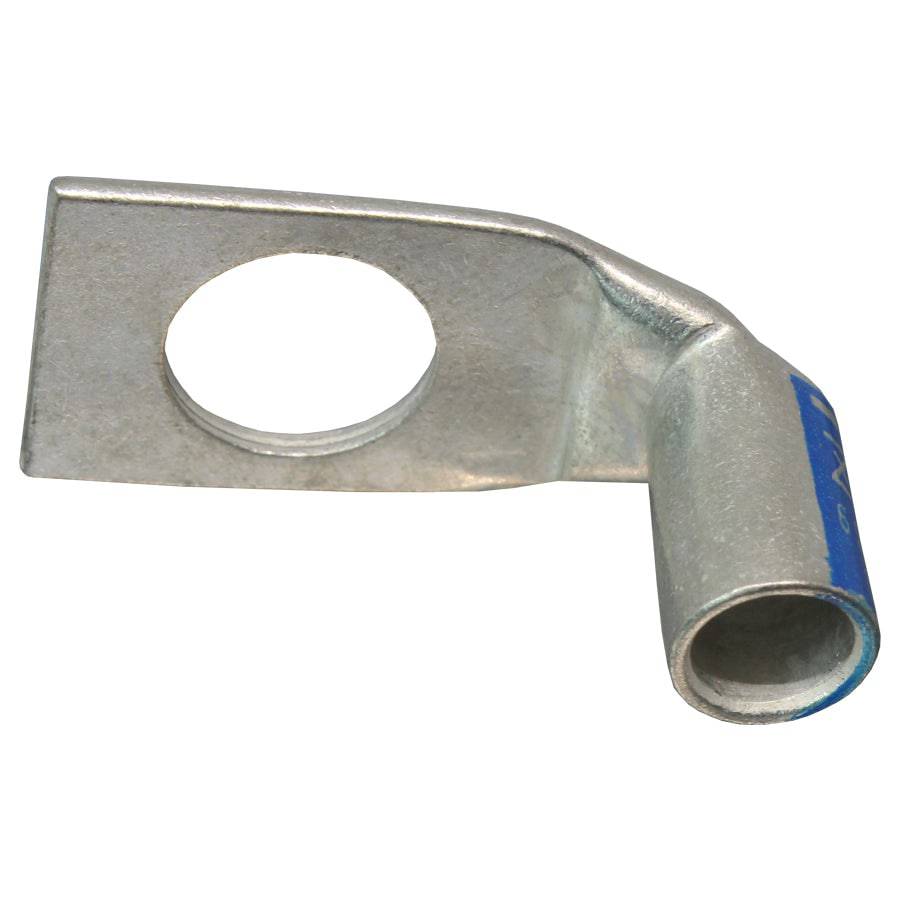

SBF638 - 90 Degree Short Barrel Compression Lug - 6 AWG - 3/8" Stud
Original price
$0.74
-
Original price
$0.74
Original price
$0.74
$0.74
-
$0.74
Current price
$0.74
SKU SBF638
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
Click to view product spec sheet:
Dimensions & Features:
| Wire Size: | 6 AWG |
| Stud Size: | 3/8" Stud |
| Color: | Blue |
| A: | 7.87mm (0.31") |
| B: | 13.71mm (0.54") |
| C: | 5.84mm (0.23") |
| D: | 15.24mm (0.60") |
| E: | 10.41mm (0.41") |
| G: | 10.16mm (0.40") |
| Material: | Tin Plated Copper |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Temperature Rating: | 90°C |
| Max Electrical Rating: | 35 KV |
| Max Electrical Current: | 65A |
Product Drawing:
