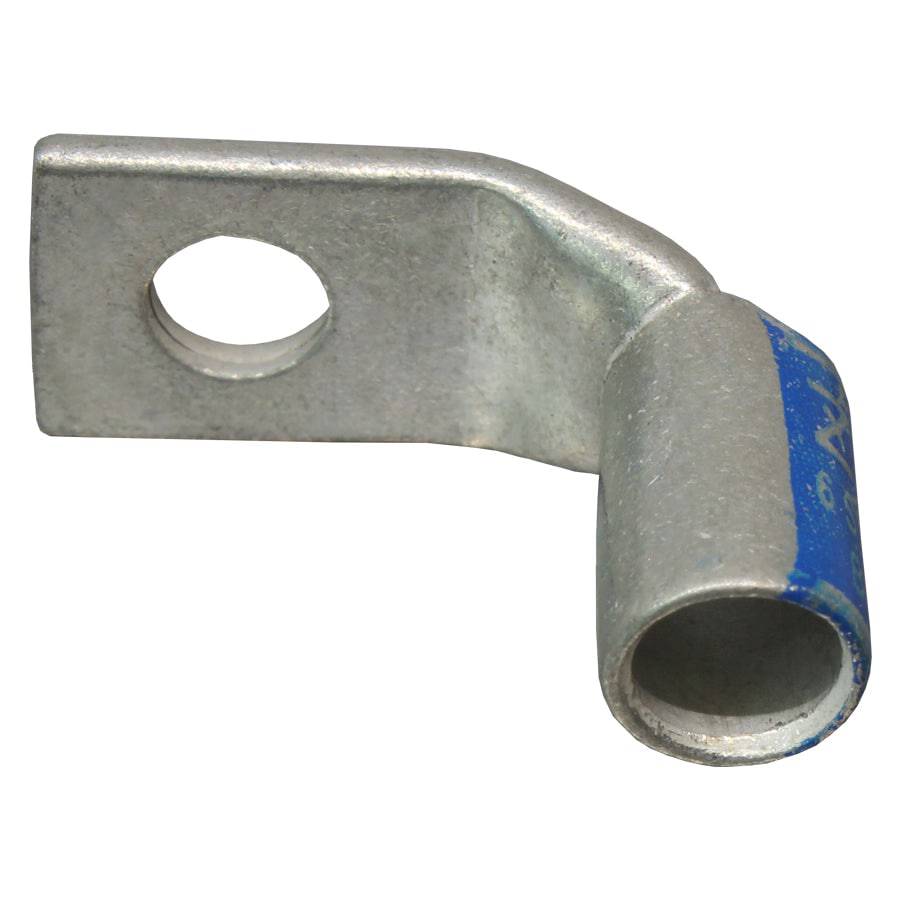

SBF610 - 90 Degree Short Barrel Compression Lug - 6 AWG - #10 Stud
Original price
$0.70
-
Original price
$0.70
Original price
$0.70
$0.70
-
$0.70
Current price
$0.70
SKU SBF610
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Click to view product spec sheet:
Dimensions & Features:
| Wire Size: | 6 AWG |
| Stud Size: | #10 Stud |
| Color: | Blue |
| A: | 7.8mm (0.31") |
| B: | 13.7mm (0.54") |
| C: | 5.8mm (0.26") |
| D: | 11.4mm (0.45") |
| E: | 5.6mm (0.22") |
| G: | 6.35mm (0.25") |
| Material: | Tin Plated Copper |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Temperature Rating: | 90°C |
| Max Electrical Rating: | 35 KV |
| Max Electrical Current: | 65A |
Product Drawing:
Cross References
Cross Reference Parts:None
