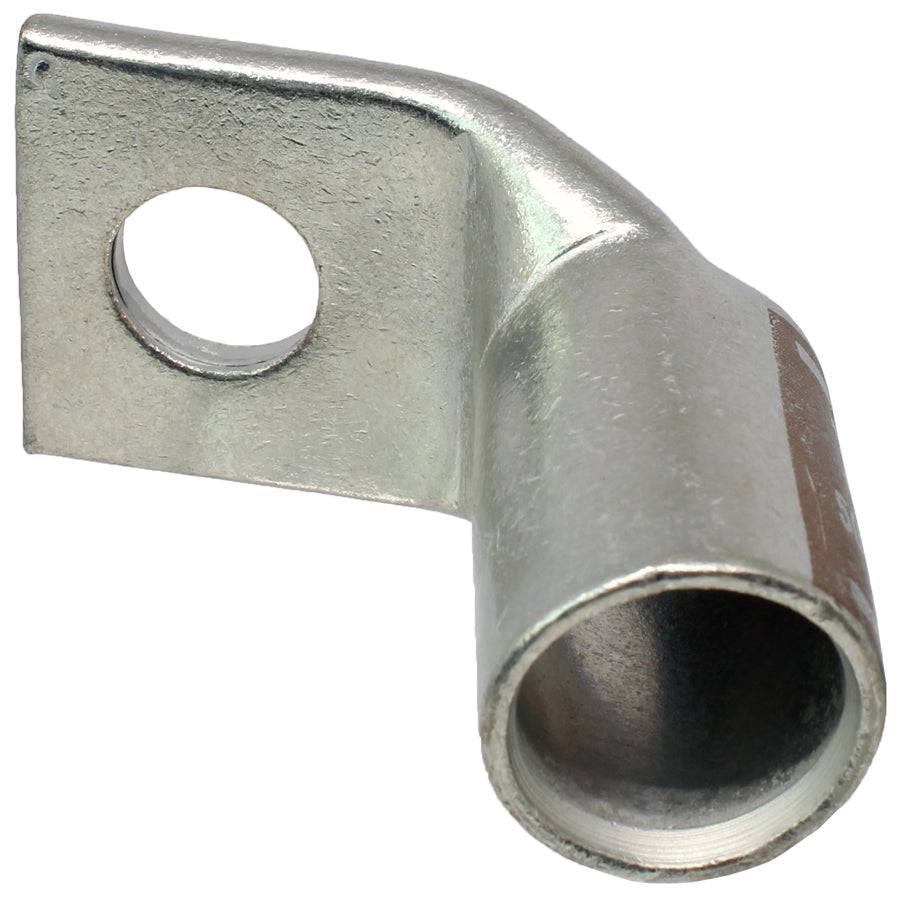

SBF50058 - 90 Degree Short Barrel Compression Lug - 500 MCM - 5/8" Stud
Original price
$18.70
-
Original price
$18.70
Original price
$18.70
$18.70
-
$18.70
Current price
$18.70
SKU SBF50058
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 500 MCM |
| Color: | Brown |
| C: | 21.8mm (0.86") |
| E: | 16.8mm (0.66") |
| D: | 39.1mm (1.54") |
| G: | 16mm (0.63") |
| B: | 36.8mm (1.45") |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 5/8" |
| Temperature Rating: | 90oC |
| Voltage Rating: | 35KV |
| Maximum Amp Rating: | 380 Amps |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
