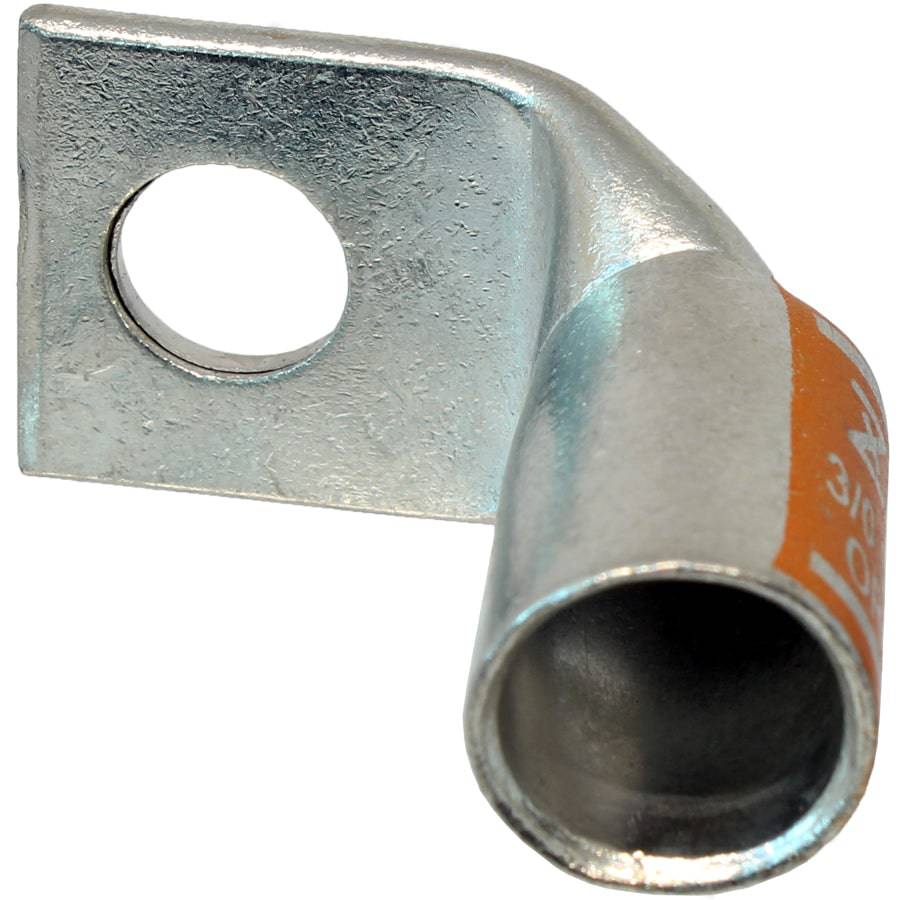

SBF3038 - 90 Degree Short Barrel Compression Lug - 3/0 AWG - 3/8" Stud
Original price
$3.84
-
Original price
$3.84
Original price
$3.84
$3.84
-
$3.84
Current price
$3.84
SKU SBF3038
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 3/0 AWG |
| Color: | Orange |
| A: | 15.57mm (0.612") |
| C: | 13mm (0.51") |
| E: | 10.4mm (0.41") |
| D: | 23mm (0.91") |
| G: | 10.2mm (0.40") |
| B: | 24.4mm (0.96") |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 3/8" |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35KV |
| Maximum Amp Rating: | 200 Amps |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:
