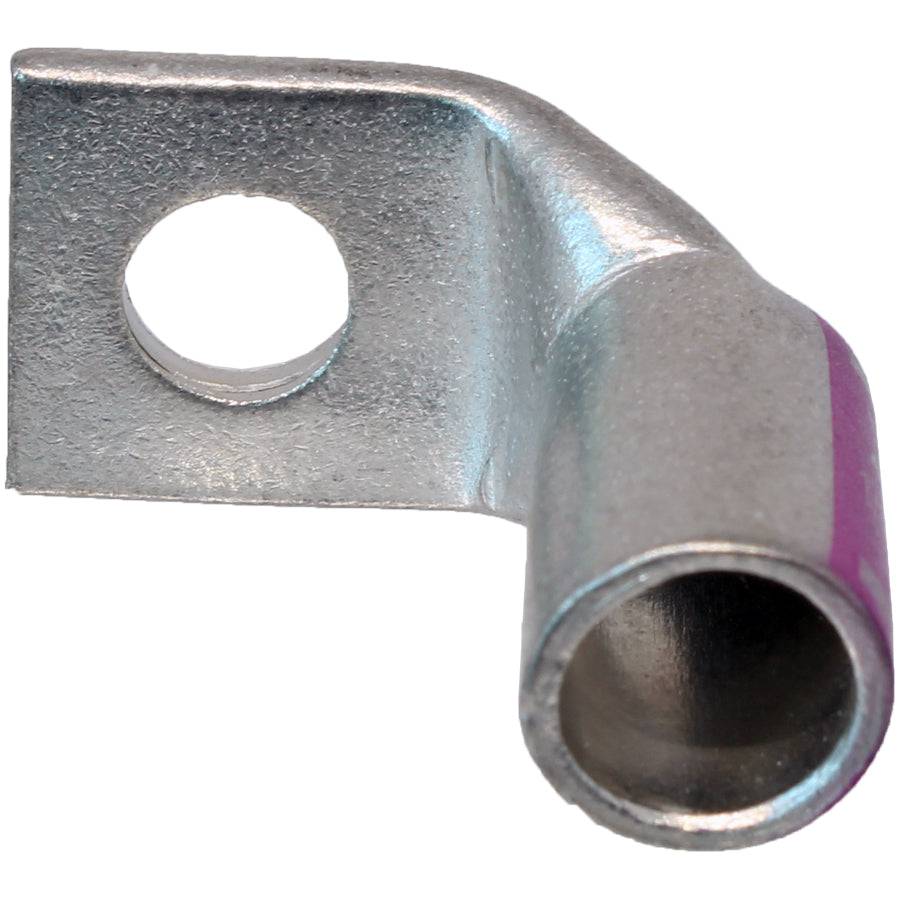

SBF10516 - 90 Degree Short Barrel Compression Lug - 1/0 AWG - 5/16" Stud
Original price
$2.70
-
Original price
$2.70
Original price
$2.70
$2.70
-
$2.70
Current price
$2.70
SKU SBF10516
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 1/0 AWG |
| Color: | Pink |
| C: | 10.2mm (0.40") |
| E: | 8.8mm (0.34") |
| D: | 18.4mm (0.73") |
| G: | 8.9mm (0.35") |
| B: | 20.3mm (0.80") |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 5/16" |
| Temperature Rating: | 90oC |
| Voltage Rating: | 35KV |
| Maximum Amp Rating: | 150 Amps |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
