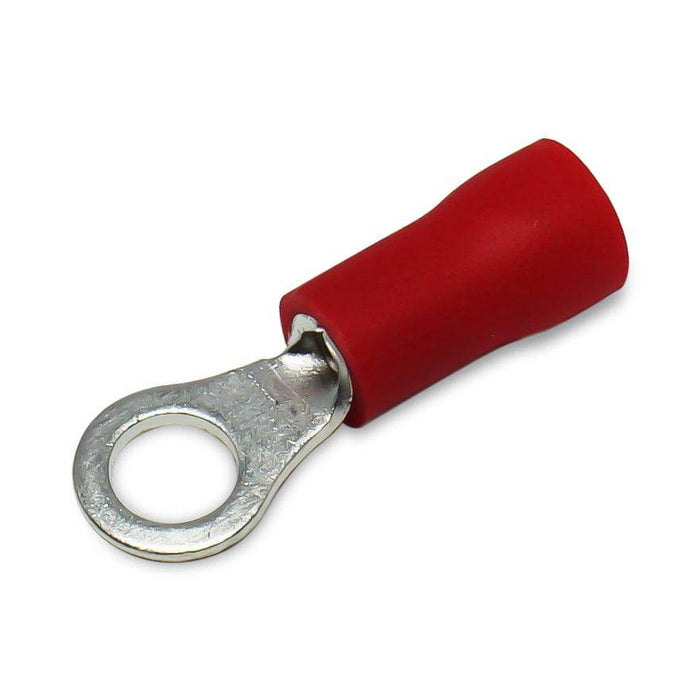

22-16 AWG PVC Vinyl Insulated Ring Terminals, #8 Stud, Butted Seam, 100 Pieces - RVS1-4
Original price
$4.68
-
Original price
$4.68
Original price
$4.68
$4.68
-
$4.68
Current price
$4.68
SKU RVS1-4
Availability:
in stock, ready to be shipped
VINYL (PVC) INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
Dimensions & Features:
Wire Size: | 22-16 AWG |
Stud Size: | #8 Stud |
Color: | Red |
T: | 0.75mm (0.03") |
L: | 19.4mm (0.764") |
F: | 6.3mm (0.248") |
E: | 10mm (0.394") |
W: | 6.6mm (0.260") |
D | 4.0mm (0.157") |
D1: | 1.7mm (0.067") |
D2: | 4.3mm (0.169") |
Terminal Material: | Tin-Plated Copper |
Insulation Material: | Vinyl |
Max Electrical Rating: | 600 Volts (105°C) |
Seam: | Butted |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Technical Drawing:
