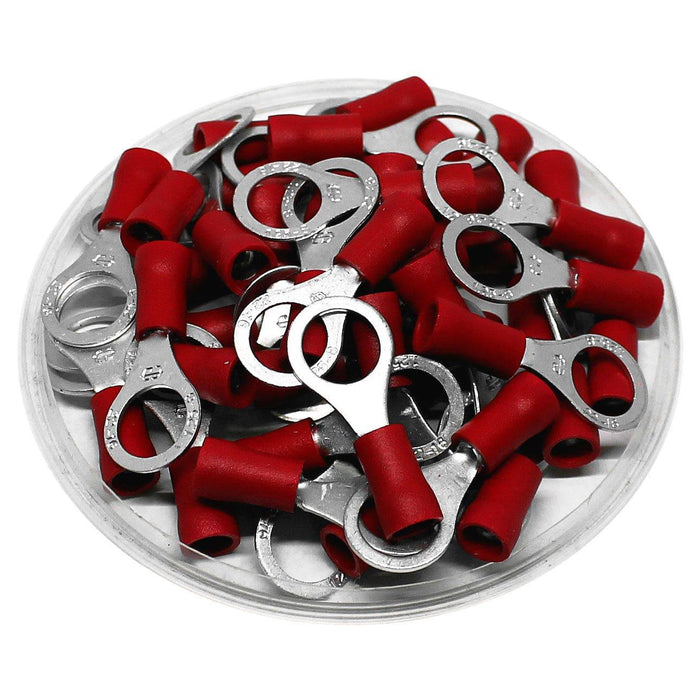

RD1-8 - Double Crimp Vinyl Insulated Ring Terminals - 22-16 AWG - 5/16" Stud
Original price
$11.13
-
Original price
$11.13
Original price
$11.13
$11.13
-
$11.13
Current price
$11.13
SKU RD1-8
Availability:
in stock, ready to be shipped
Ring terminals offer a tight and secure connection in high vibration areas. The insulated sleeve is securely fastened to metal grip sleeve providing protection to the crimp joint. Color coded according to industry standards.
Dimensions & Features:
Wire Size: | 22-16 AWG |
Stud Size: | 5/16" Stud |
Color: | Red |
T: | 0.75mm (.03") |
L: | 27.3mm (1.08") |
F: | 11mm (0.43") |
E: | 10.5mm (0.41") |
W: |
11.6mm (0.46") |
D: |
4.2mm (0.17") |
D1: |
1.7mm (0.07") |
D2: | 8.4mm (0.33") |
Terminal Insulation: | Vinyl |
Terminal Material: | Tin-Plated Copper |
Max Voltage Rating: | 105°C - 600 Volts |
Max Electrical Current: | 18AMP |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
