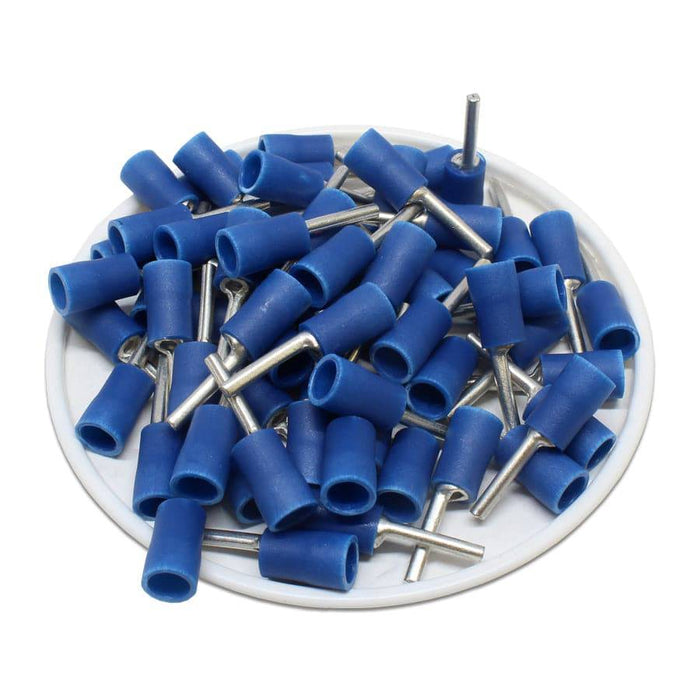

16 to 14 AWG Vinyl Insulated Pin Terminals, 1/2" Pin, UL Approved, 100 Pieces - PTV2-12
Original price
$0.00
-
Original price
$7.18
Original price
$7.18
$0.00
-
$7.18
Current price
$7.18
SKU PTV2-12
Availability:
in stock, ready to be shipped
Availability:
Out of stock
VINYL INSULATED PIN TERMINALS
Pin terminals are used to connect cables and wires to an electrical system. They are commonly used to connect wires to terminal blocks. For standard applications, pin terminals provide quick and easy connections when using of screw or clamp type blocks. However, they can also be used in applications where a slight reduction in wire circumference is needed for tight spaces.
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Color: | Blue |
| T: | 0.8mm (0.03") |
| W: | 1.9mm (0.08") |
| L: | 21.8mm (0.86") |
| F: | 12mm (0.39") |
| E: | 10mm (0.39") |
| D: | 4.5mm (0.18") |
| D1: | 2.3mm (0.09") |
| Seam: | Butted |
| Terminal Material: | Tin-Plated Copper |
| Insulation: | Vinyl |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Amp Rating: | 30A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
Videos
Click here to check out our YouTube channel:
