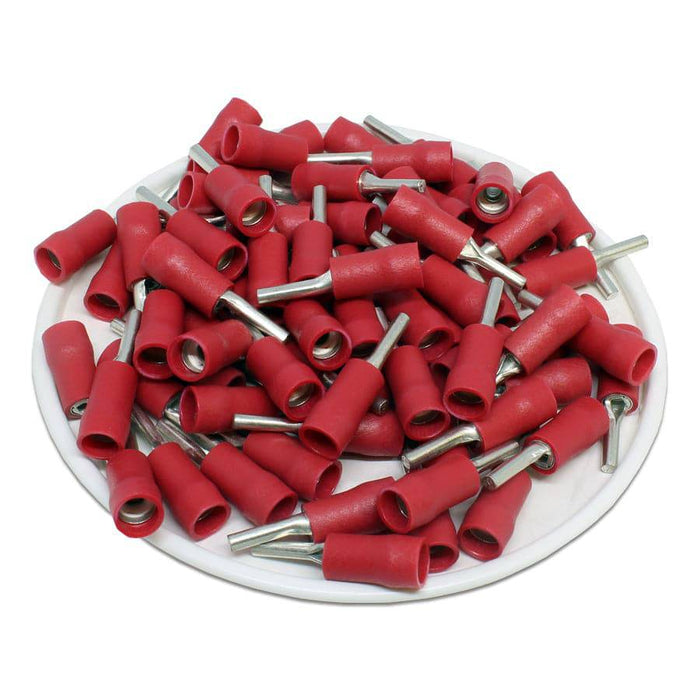

PTD1-9 Vinyl Insulated Pin Terminals - Double Crimp - 22-16 AWG - Red
Original price
$11.62
-
Original price
$11.62
Original price
$11.62
$11.62
-
$11.62
Current price
$11.62
SKU PTD1-9
Availability:
in stock, ready to be shipped
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
Dimensions & Features:
Technical Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| T: | 0.75mm (0.03") |
| L: | 18.8mm (0.74") |
| F: | 9mm (0.35") |
| E: | 10mm (0.39") |
| W: | 1.9mm (0.08") |
| D: | 4mm (0.16") |
| D1: | 1.7mm (0.07") |
| Terminal Material: | Tin-Plated Copper |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Amp Rating: | 18A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
