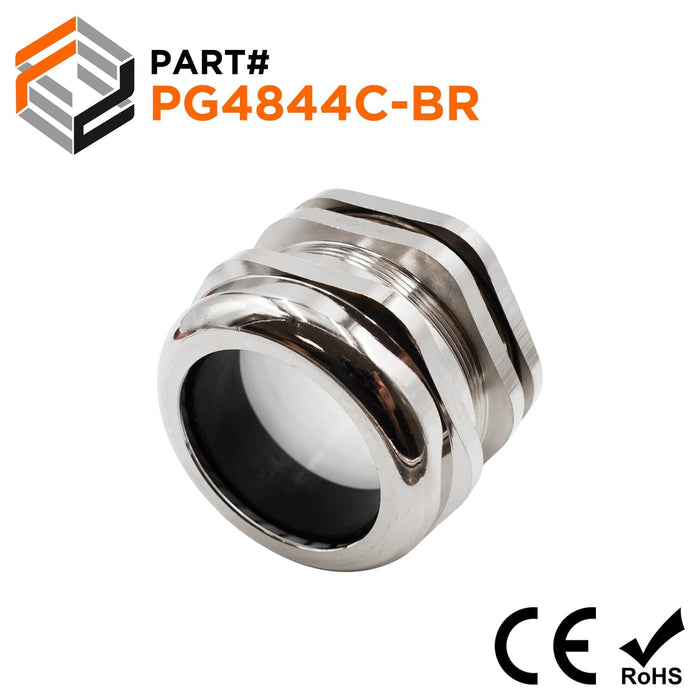

PG48 Cable Gland & Lock Nut, Nickel Plated Brass, Range: 1-7/16" to 1-3/4" - 1 Piece - PG4844C-BR
Original price
$22.50
-
Original price
$22.50
Original price
$22.50
$22.50
-
$22.50
Current price
$22.50
SKU PG4844C-BR
Availability:
in stock, ready to be shipped
PG Thread Nickel Plated Brass Cable Gland with Lock Nut and O-Ring.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | PG48 |
| Cable Range: | 1-7/16" to 1-3/4" (37-44mm) |
| C1: | 59mm (2.32") |
| C2: | 44.5mm (1.75") |
| D2: | 44.5mm (1.75") |
| B1: | 44.5mm (1.75") |
| L1: | 9.8mm (0.38") |
| L2: | 36.3mm (1.43") |
| L3: | 24.9mm (0.98") |
| Material: | Nickel-Plated Brass |
| Ingress Protection: | IP68 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
