PBDNY1-250 - Nylon Insulated Piggyback Terminals - 22-16 AWG
Original price
$13.17
-
Original price
$13.17
Original price
$13.17
$13.17
-
$13.17
Current price
$13.17
SKU PBDNY1-250
Availability:
in stock, ready to be shipped

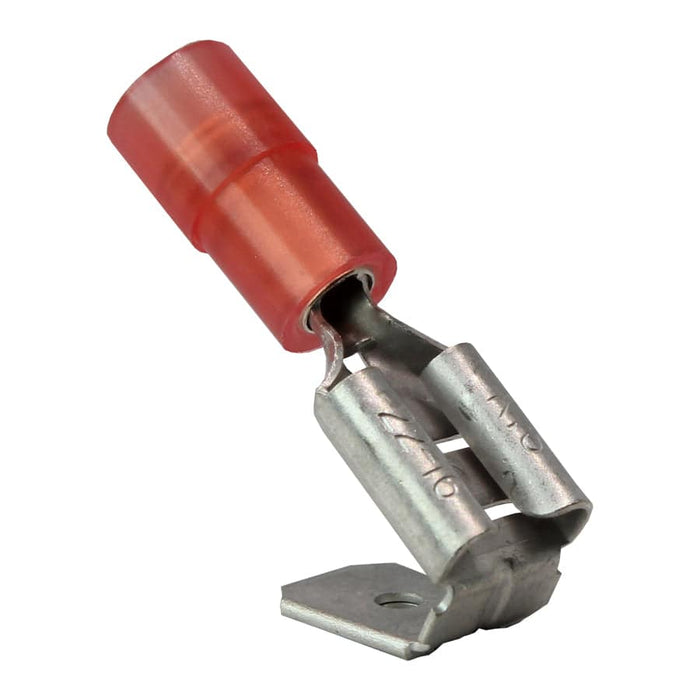

Nylon insulated double crimp piggy-back terminals create a splice when fitted together with their counterparts. These terminals allow for a second connection via the "piggy-back" tab on the back of the terminal.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| Insulation Material: | Nylon |
| Terminal Material: | Tin-Plated Brass |
| Nema Tab: | 0.8mm x 6.35mm (0.032" x 0.250") |
| Max Electrical Rating: | 105°C (221°F) - 600 Volts |
| Max Electrical Current: | 10A |
| T: | .04mm (.02") |
| L: | 23mm (.91") |
| F: | 8mm (.32") |
| F1: | 8.2mm (.32") |
| W: | 6.6mm (.26") |
| D: | 4mm (.16") |
| B: | 11mm (.43") |
| W1: | 6.4mm (.25") |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
