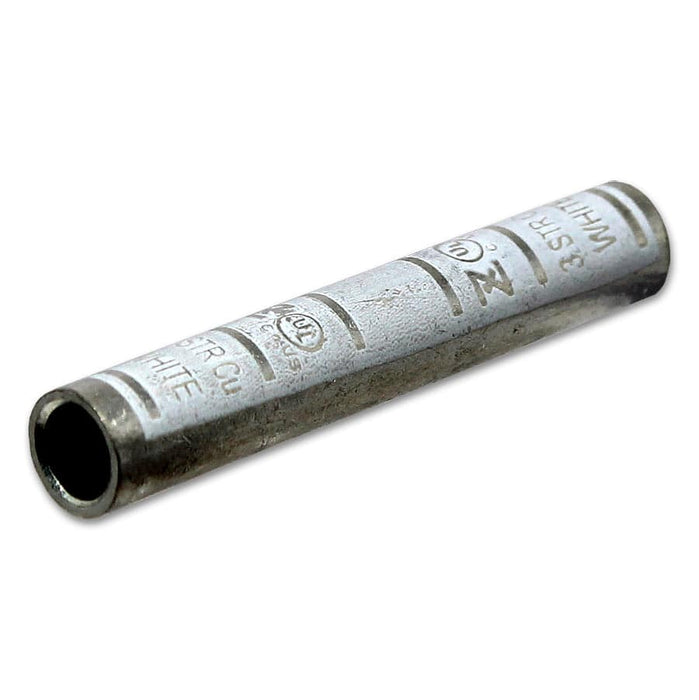

LC3 - 3 AWG Long Barrel Splice - White
Original price
$1.20
-
Original price
$1.20
Original price
$1.20
$1.20
-
$1.20
Current price
$1.20
SKU LC3
Availability:
in stock, ready to be shipped
Long barrel splices are used to secure and protect wire-to-wire connections. These two-way connectors provide a high quality connection, high conductivity, and high pullout values.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 3 AWG |
| Color: | White |
| L: | 60.4mm (2.38") |
| D: |
9.9mm (0.39") |
| D1: | 7.8mm (0.31") |
| Barrel: | Seamless |
| Material: | Tin Plated Copper |
| Voltage Rating: | 600V |
| Max Electrical Current: | 100 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
