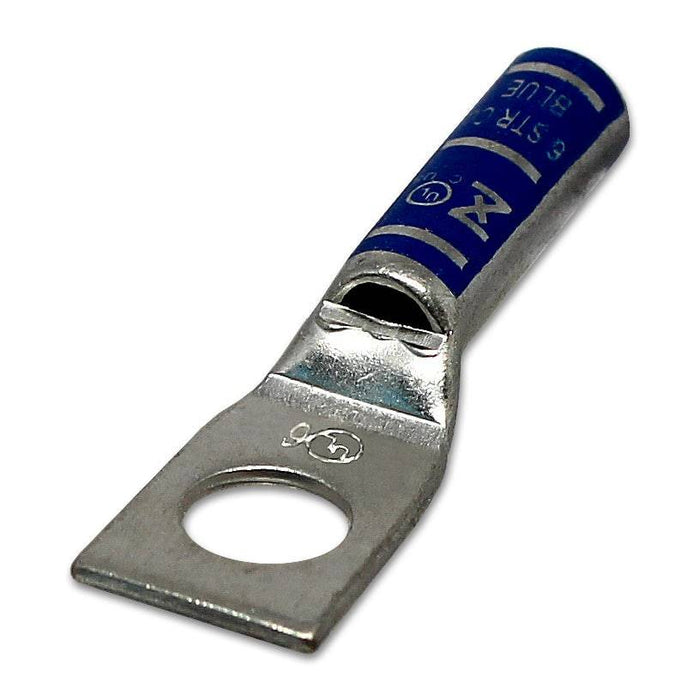

LB610 - 6AWG Long Compression Lug - #10 Stud Size
Original price
$0.75
-
Original price
$0.75
Original price
$0.75
$0.75
-
$0.75
Current price
$0.75
SKU LB610
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 6 AWG |
| Stud Size: | #10 |
| Color: | Blue |
| L: | 41.2mm (1.62") |
| L1: | 15.2mm (0.60") |
| D: | 11.4mm (0.45") |
| D1: | 7.9mm (0.31") |
| D2: | 5.8mm (0.23") |
| B: | 22.8mm (0.90") |
| E: | 5.5mm (0.22") |
| F: | 1.9mm (0.07") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35 KV |
| Max Amp Rating: | 65A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
