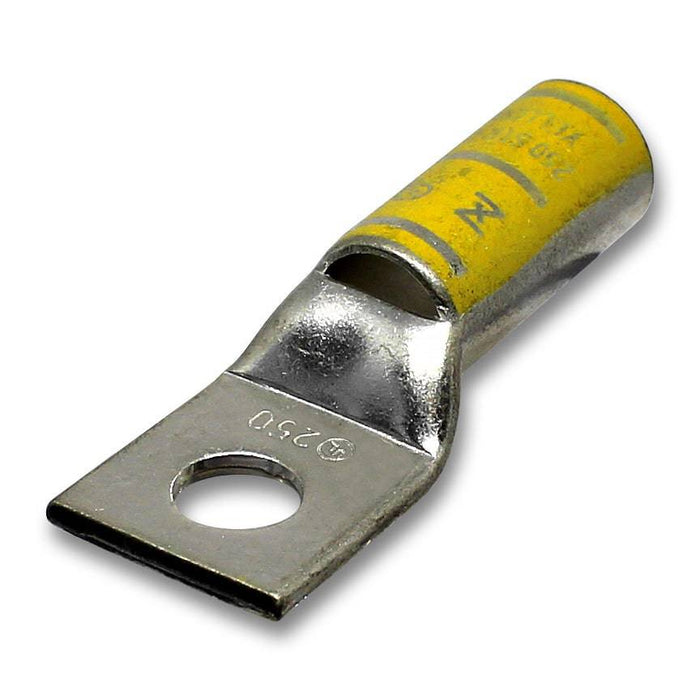

LB250516 - 250 MCM Long Compression Lug - 5/16" Stud Size
Sold out
Original price
$4.41
-
Original price
$4.41
Original price
$4.41
$4.41
-
$4.41
Current price
$4.41
SKU LB250516
Availability:
Out of stock
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 250MCM |
| Stud Size: | 5/16" |
| Color: | Yellow |
| L: | 67.9mm (2.67") |
| L1: | 19.1mm (0.75") |
| D: | 27.9mm (1.10") |
| D1: | 19.1mm (0.75") |
| D2: | 16.0mm (0.63") |
| B: | 40.0mm (1.57") |
| E: | 8.7mm (0.34") |
| F: | 3.0mm (0.11") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35 KV |
| Max Amp Rating: | 405A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
