22 to 10 AWG Heat Shrink Spade Terminals Mini Kit, Polyethylene, 90 Pieces - HSTF100
Original price
$29.99
-
Original price
$29.99
Original price
$29.99
-
Original price
$29.99
Original price
Current price
$29.99
$29.99
-
$29.99
Current price
$29.99
Availability:
in stock, ready to be shipped
HEAT SHRINKABLE SPADE TERMINALS
Heat shrink insulated spade terminals are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.

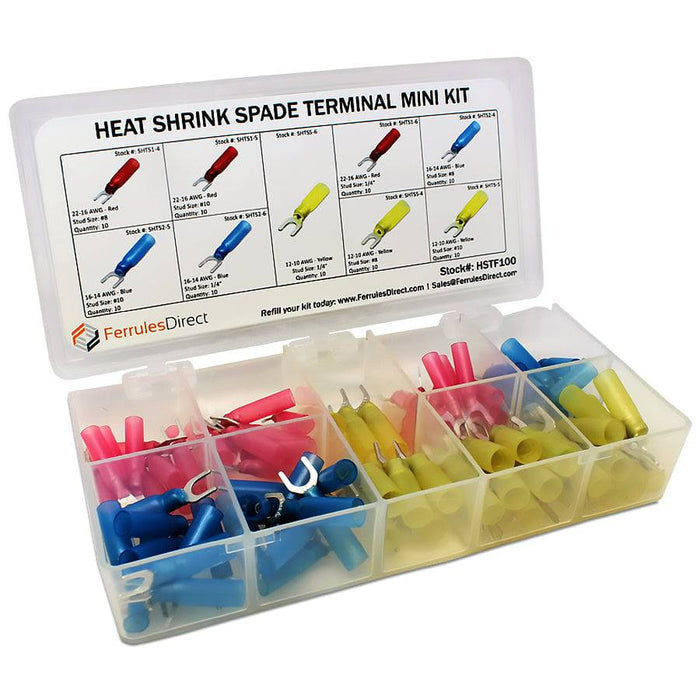

Our HSTF100 mini starter kit has a small assortment of each size ranging from 22 to 10 AWG.

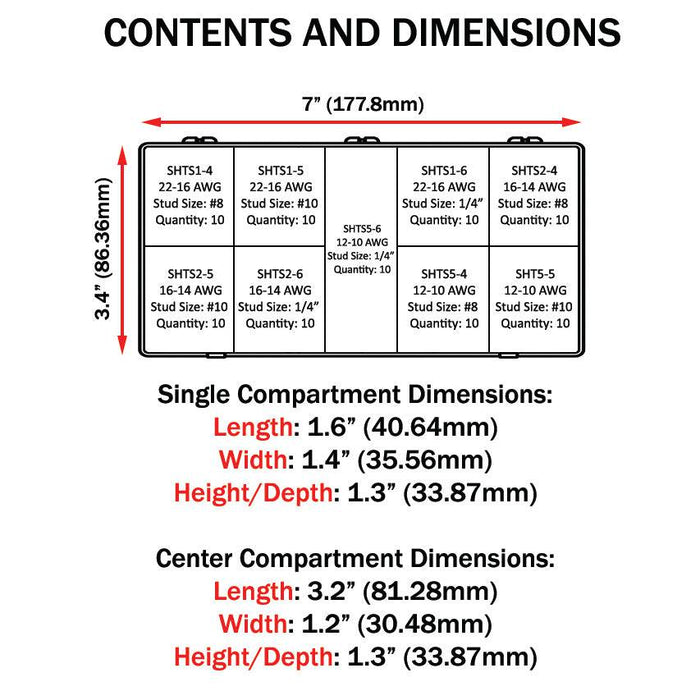

| Contents of Kit - Quick Refill Information | ||||
| Stock # | Color | Size | Stud Size | Quantity |
| SHTS1-4 | Red | 22-16 AWG | #8 | 10 |
| SHTS1-5 | Red | 22-16 AWG | #10 | 10 |
| SHTS1-6 | Red | 22-16 AWG | 1/4" | 10 |
| SHTS2-4 | Blue | 16-14 AWG | #8 | 10 |
| SHTS2-5 | Blue | 16-14 AWG | #10 | 10 |
| SHTS2-6 | Blue | 16-14 AWG | 1/4" | 10 |
| SHTS5-4 | Yellow | 12-10 AWG | #8 | 10 |
| SHT5-5 | Yellow | 12-10 AWG | #10 | 10 |
| SHTS5-6 | Yellow | 12-10 AWG | 1/4" | 10 |
