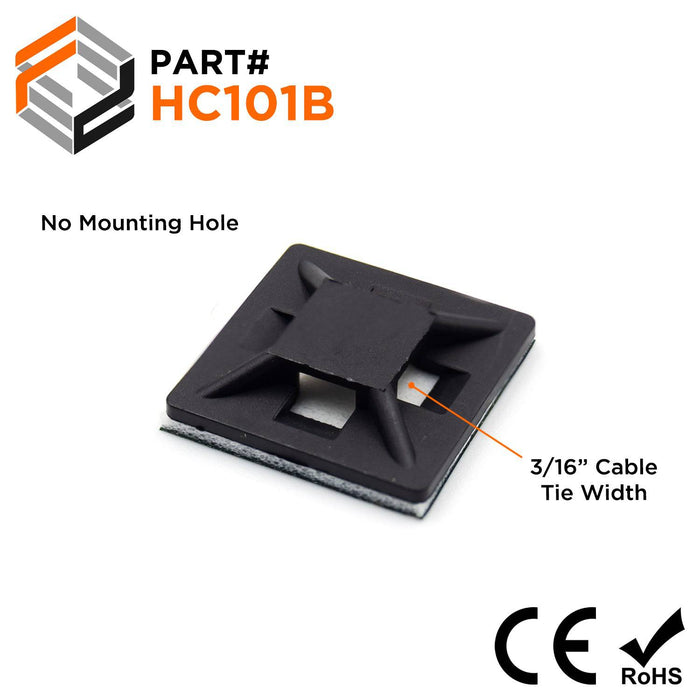

13/16"L x 13/16"W Nylon Self-Adhesive Tie Mounts - Cable Tie Width: 3/16", Black, 100 Pieces
Original price
$9.00
-
Original price
$9.00
Original price
$9.00
$9.00
-
$9.00
Current price
$9.00
SKU HC101B
Availability:
in stock, ready to be shipped
Self-adhesive tie mounts offer lightweight support to wire bundles. For added support of heavy wire bundles, tie mounts are also available with a screw mounting hole. Always apply on a clean, smooth, grease-free surface. Dimensions listed in the title are nominal dimensions. For exact specs please see chart below.
Dimensions & Features:
Technical Drawing:
None
Dimensions & Features:
| Size (LxWxH): | 20.8 x 20.8 x 4mm |
| Color: | Black |
| Mounting Style: | Self-Adhesive |
| L: | 20.8mm (0.82") |
| W: | 20.8mm (0.82") |
| H: | 4mm (0.16") |
| T (Cable Tie Slot Width): | 4.5mm (0.18") |
| Mounting Hole: | None |
| Material: | UL Approved 94UV-2 Nylon 6/6 |
| Service Temperature: | -40°F to 185°F (-40°C to 85°C) |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
