FSNYDS5-4 - Nylon Flange Spade Terminal Double Crimp - 12-10 AWG - Yellow
Original price
$35.54
-
Original price
$35.54
Original price
$35.54
$35.54
-
$35.54
Current price
$35.54
SKU FSNYDS5-4
Availability:
in stock, ready to be shipped

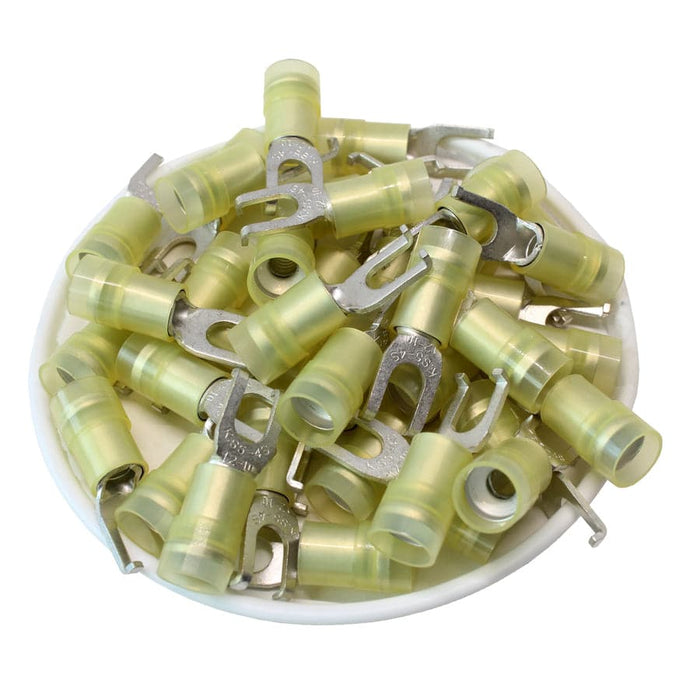

Nylon insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength. UL Flammability UL94V-2
Dimensions & Features:
Technical Drawing:
None
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Stud Size: | #8 Stud |
| Color: | Yellow |
| T: | 1mm (0.04") |
| L: | 25.5mm (1.0") |
| F: | 6.2mm (0.24") |
| E: | 13mm (0.51") |
| W: | 7.6mm (0.30") |
| A: | 1.5mm (0.06") |
| D: | 6.4mm (0.25") |
| D1: | 3.4mm (0.13") |
| D2: | 4.3mm (0.17") |
| Seam: | Brazed |
| Terminal Material: | Tin-Plated Copper |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Amp Rating: | 50A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
