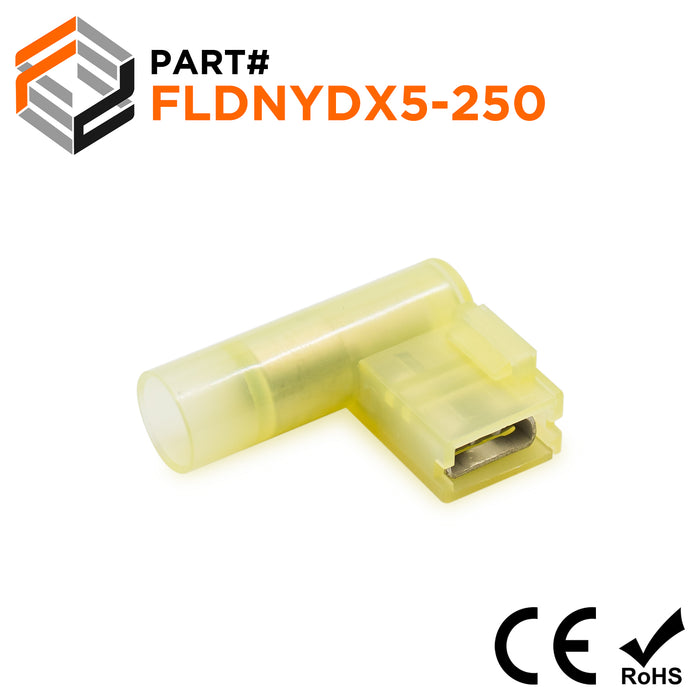

FLDNYDX5-250 - Double Crimp Nylon Insulated Quick Disconnects - 12-10 AWG
Original price
$0.00
-
Original price
$22.10
Original price
$22.10
$0.00
-
$22.10
Current price
$22.10
SKU FLDNYDX5-250
Availability:
in stock, ready to be shipped
Availability:
Out of stock

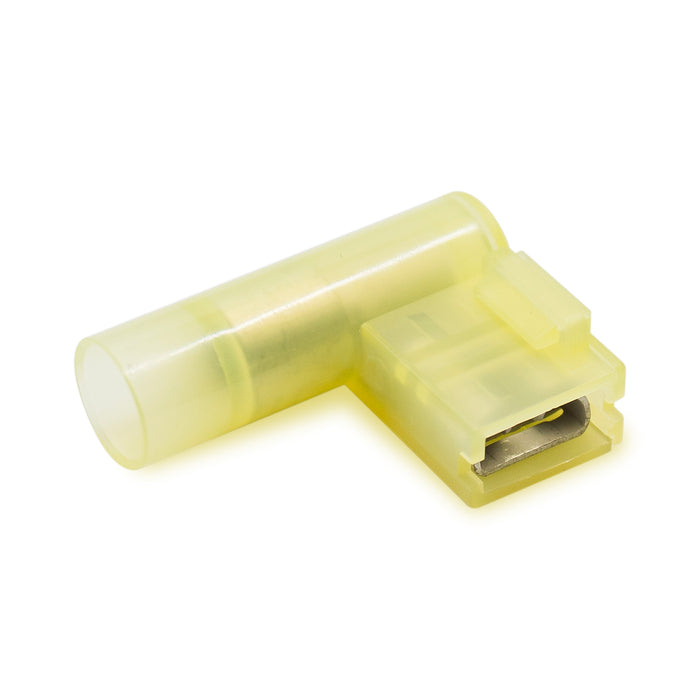

Nylon insulated double crimp quick disconnect terminals create a splice when fitted together with their counterparts. Double Crimp refers to an additional metal sleeve within the terminal to allow for a tighter hold around the wire, resulting in a more secure crimp.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Color: | Yellow |
| L: | 23mm (.91") |
| F: | 7.5mm (.30") |
| W: | 6.6mm (.26") |
| C: | 3.3mm (.13") |
| B: | 13mm (.51") |
| D: | 6.3mm (.25") |
| Material: | Tin-Plated Brass |
| Nema Tab: | 0.8mm x 6.35mm (0.032" x 0.250") |
| Max Electrical Rating: | 105°C (221°F) - 300 Volts |
| Max Electrical Current: | 24A |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
