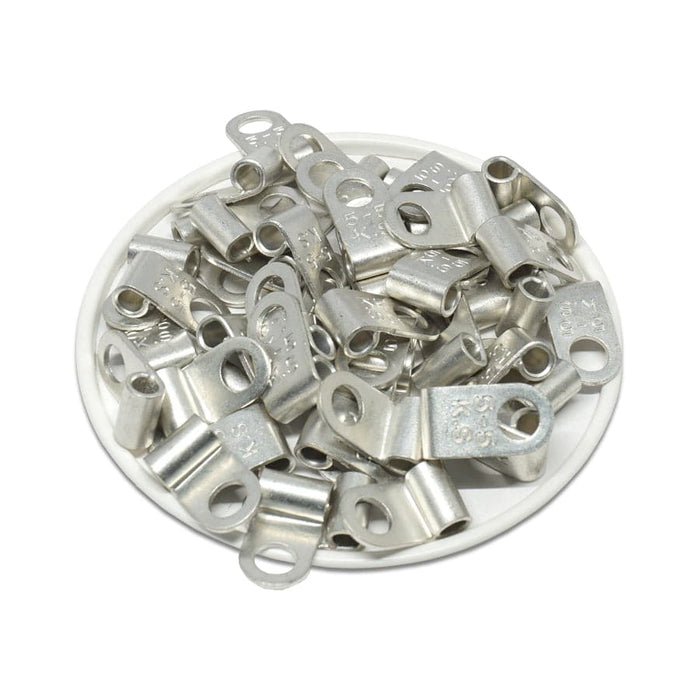

FGNB5-5 - Non Insulated Flag Terminal - Ring Tongue - 12-10AWG
Original price
$3.58
-
Original price
$15.12
Original price
$15.12
$3.58
-
$15.12
Current price
$15.12
SKU FGNB5-5
Availability:
in stock, ready to be shipped
Availability:
Out of stock
Non-insulated flag terminals with ring tongue enable the user to create a 90° connection without bending the conductor..
Dimensions & Features:
Product Drawing:
McMaster-Carr: 73125K69
Tyco AMP: 36272
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Stud Size: | #10 |
| T: | 1.0mm (0.03") |
| L: | 17.8mm (0.70") |
| F: | 7.4mm (0.29") |
| W: | 9.6mm (0.37") |
| D: | 5.6mm (0.22") |
| D1: | 3.4mm (0.13") |
| D2: | 5.3mm (0.21") |
| Material: | Tin-Plated Copper |
| Temperature Rating: | 105oC |
| Volt Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:McMaster-Carr: 73125K69
Tyco AMP: 36272
