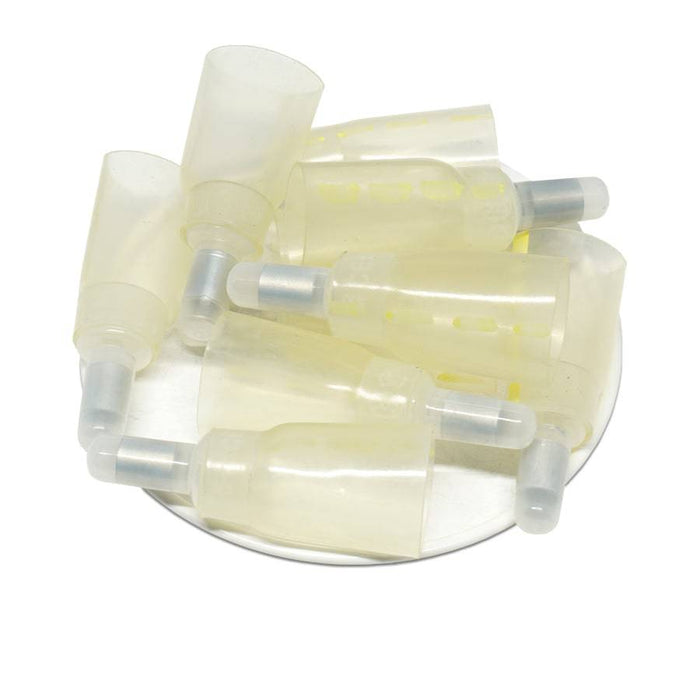

12 to 10 AWG Heat Shrinkable Multi-Wire Closed End Connectors, Yellow Dash, Polyolefin, 25 Pieces - FDEC5L
Original price
$5.65
-
Original price
$5.65
Original price
$5.65
$5.65
-
$5.65
Current price
$5.65
SKU FDEC5L
Availability:
in stock, ready to be shipped
HEAT SHRINKABLE CLOSED END CONNECTORS
Multi-Wire Heat Shrink Closed End Connectors are made of dual wall polyolefin consisting of a meltable integral inner wall. These connectors are non-corrosive, and the meltable adhesive is extra-active and free-flowing, helping to create a weatherproof connection. To protect wires from abrasions, mechanical abuse, water, salt and other contaminants, these connectors are commonly used in automotive and marine vehicles, and other various electrical applications. These connectors are designed with a clearly marked dashed line helps to quickly identify wire gauge range.
- 3:1 Shrink Ratio ✓
- Waterproof ✓
- Excellent Replacement for Wire Nuts ✓
- Active Adhesive Seals Between Multiple Wires ✓
- Excellent Stretch & Mechanical Damage Resistance ✓
DIMENSIONS & FEATURES:
| Wire Size: | 12 to 10 AWG |
| Color: | Clear with Yellow Dash |
| Shrink Ratio: | 3:1 |
| L: | 1.60" (40.6mm) |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Polyolefin |
| Operating Temperature: |
-67°F to 257°F (-55°C to 125°C) |
| Waterproof: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
