3/32" Wire Rope Swage Sleeves, Oval Shape, Zinc Plated Copper, 25 Pieces - FD710725
Save 40%
Original price
$9.99
Original price
$9.99
-
Original price
$9.99
Original price
$9.99
Current price
$6.00
$6.00
-
$6.00
Current price
$6.00
SKU FD710725
Availability:
in stock, ready to be shipped

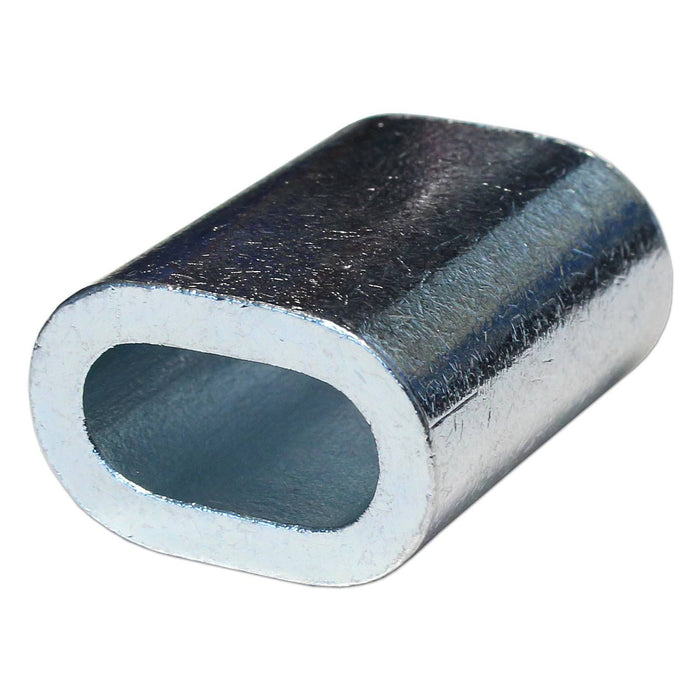

ZINC PLATED COPPER SWAGE SLEEVES: OVAL SHAPE
Swage Sleeves, also known as compression sleeves are used to enclose the ends of a wire/cable for various rigging needs. The sleeve is capable of being placed anywhere on the cable but is predominantly used at the ends. Available in copper, zinc-plated copper, and aluminum.
DIMENSIONS & FEATURES:
| Wire Range: | 3/32" |
| A: | 0.35" (9.0mm) |
| B: | 0.18" (4.79mm) |
| C: | 0.30" (7.6mm) |
| Terminal Material: | Zinc-Plated Copper |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
