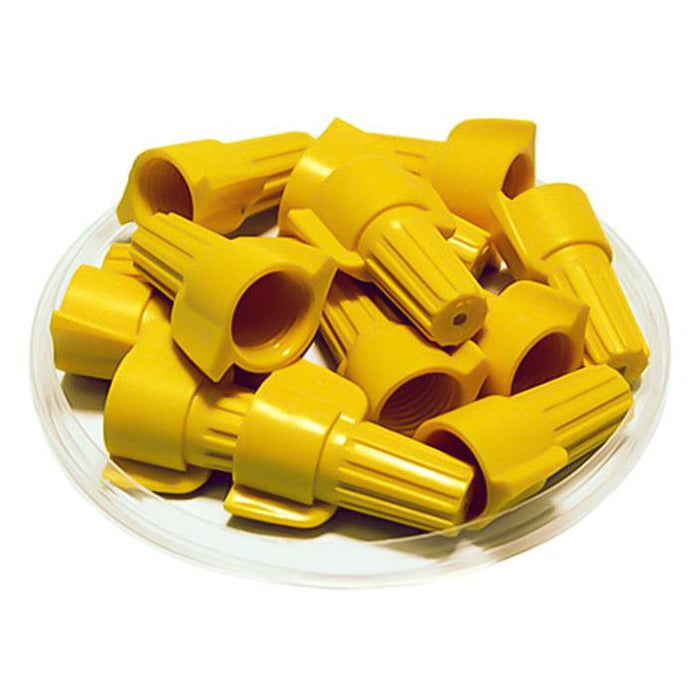

FD11DWN - Double Wing Twist-On Wire Cap Connectors - 18-10 AWG - Yellow
Original price
$8.34
-
Original price
$8.34
Original price
$8.34
$8.34
-
$8.34
Current price
$8.34
SKU FD11DWN
Availability:
in stock, ready to be shipped
Twist-on wire connectors are a type of electrical connector used to fasten two or more low-voltage conductors. They're typically installed by hand by being twisted onto the stripped ends of wires. The wires are then drawn into the connector's metal insert and twisted and squeezed together inside. Twist-on connectors are not often used on wire gauges larger than 10 AWG because the solid wires are too stiff to be reliably connected with this method. Twisting installation made easier with the wings.
Dimensions & Features:
Wire Combinations:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 18-10 AWG |
| Color: | Yellow |
| L: | 25.4mm (1.00") |
| D: | 18mm (0.71") |
| D1: |
10mm (0.39") |
| Strip Length (Stranded): | 3/8" (9.5mm) |
| Strip Length (Solid): | 3/8" (9.5mm) |
| Max Voltage: | 600V |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Wire Combinations:
| Two 18 AWG | Three 12 AWG |
Product Drawing:
Cross References
Cross Reference Parts:None
