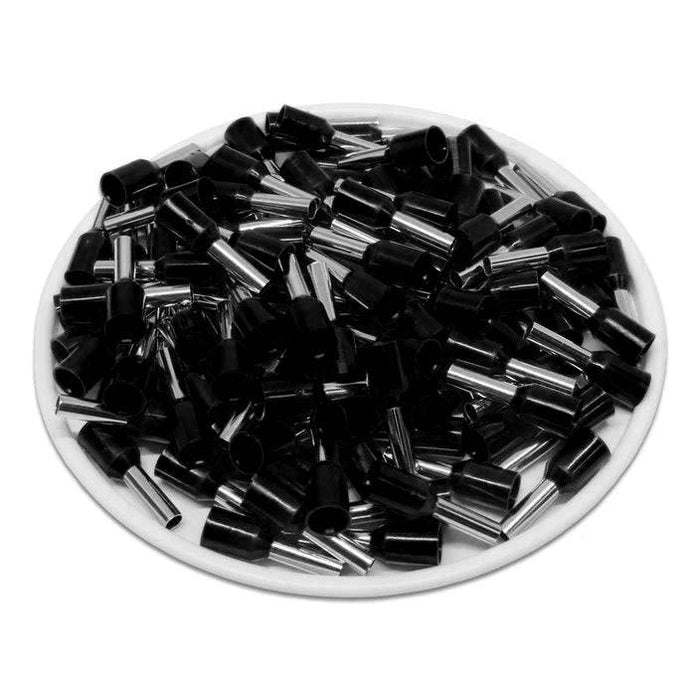

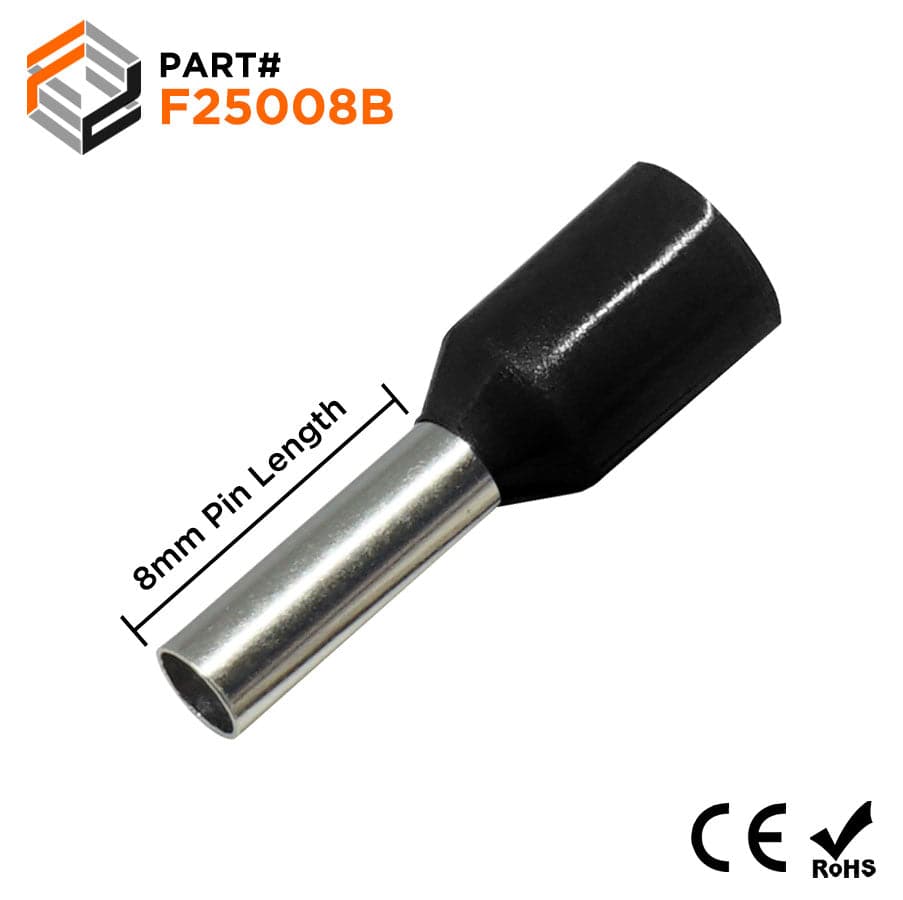

F25008B - 14AWG (8mm Pin) Insulated Ferrules - Black
Original price
$8.50
-
Original price
$8.50
Original price
$8.50
$8.50
-
$8.50
Current price
$8.50
SKU F25008B
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
None
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 14 AWG |
| Color: | Black |
| Material: | Tin Plated Copper |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 30A |
| L1: | 15.5mm (0.59") |
| L2: | 8.0mm (0.31") |
| D: | 2.5mm (0.09") |
| D1: | 2.2mm (0.08") |
| D2: | 4.2mm (0.15") |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:
