ENACU1408LR - Copper Splice Cap Connectors - 14-08AWG

Name: ENACU1408LR - Copper Splice Cap Connectors - 14-08AWG
Brand: Ferrules Direct
SKU: ENACU1408LR
Price: 28.52 USD
Availability: InStock

$28.52 - $28.52

$28.52

$28.52 - $28.52

$28.52

Availability:

in stock, ready to be shipped

Piece Quantity: 100 Pieces

100 Pieces

Quantity

true

More payment options

PRODUCT DESCRIPTION

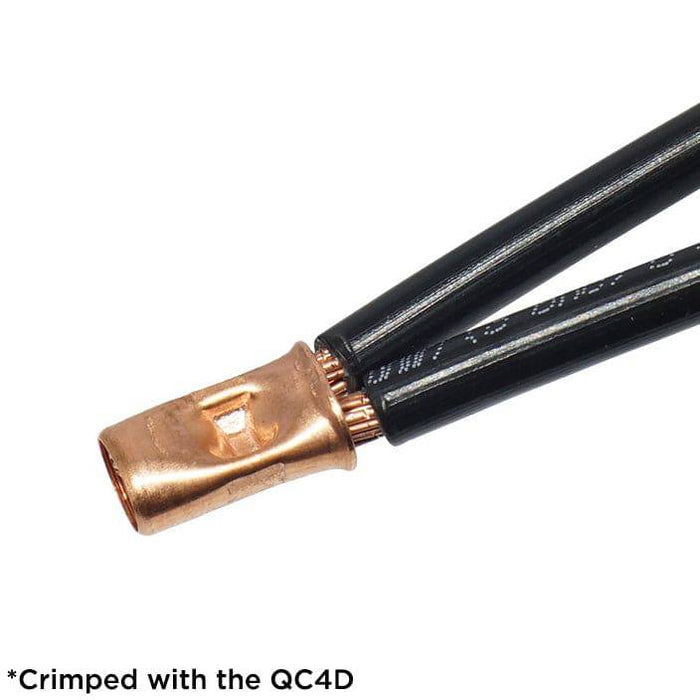

Copper splice caps are crimpable connectors designed for use with both stranded and solid wires.
DIMENSIONS AND FEATURES
L:	15.5mm (0.61")	Wire Range:	14-08AWG
D:	9.25mm (0.36")	Material:	Copper
C:	6.7mm (0.26")	Max Electrical Current:	18AMP
W:	7.8mm (0.31")	Max Electrical Rating:	105^oC - 600 Volts
		UL Recognized:	Yes
		CE Certified:	Yes
		RoHS Compliant	Yes
TECHNICAL DRAWING
