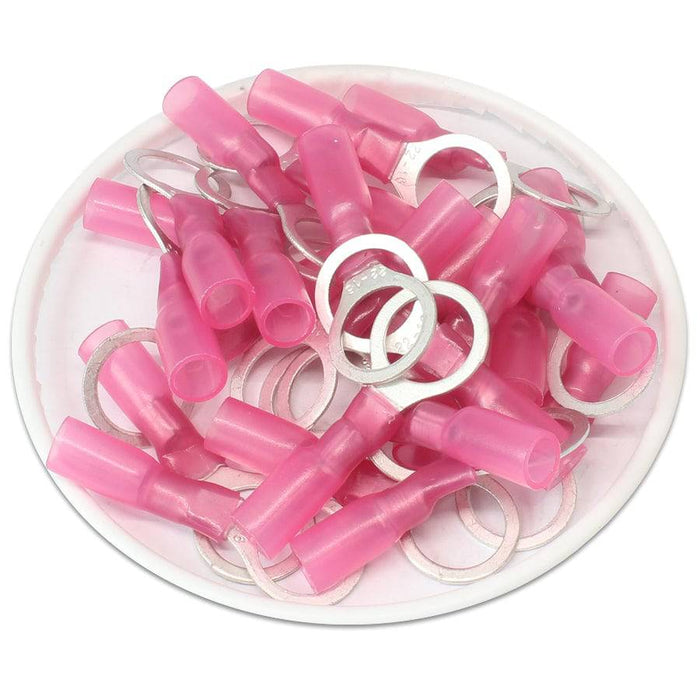

22 to 16 AWG Heat Shrink Ring Terminals, 3/8" Stud, Polyolefin, 25 Pieces - DSR38
Original price
$4.90
-
Original price
$4.90
Original price
$4.90
$4.90
-
$4.90
Current price
$4.90
SKU DSR38
Availability:
in stock, ready to be shipped
HEAT SHRINKABLE RING TERMINALS: POLYOLEFIN
Heat shrink insulated ring terminals are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.
DIMENSIONS & FEATURES:
| Wire Size: | 22 to 16 AWG |
| Stud Size: | 3/8" |
| Color: | Red |
| D: | 4.8mm (0.19") |
| D1: | 1.6mm (0.06") |
| D2: | 10.5mm (0.41") |
| B: | 13.6mm (0.54") |
| E: | 21.0mm (0.83") |
| L: | 38.0mm (1.50") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Polyethylene |
| Temperature Rating: | -67oF to 221oF (-55oC to 125oC) |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
