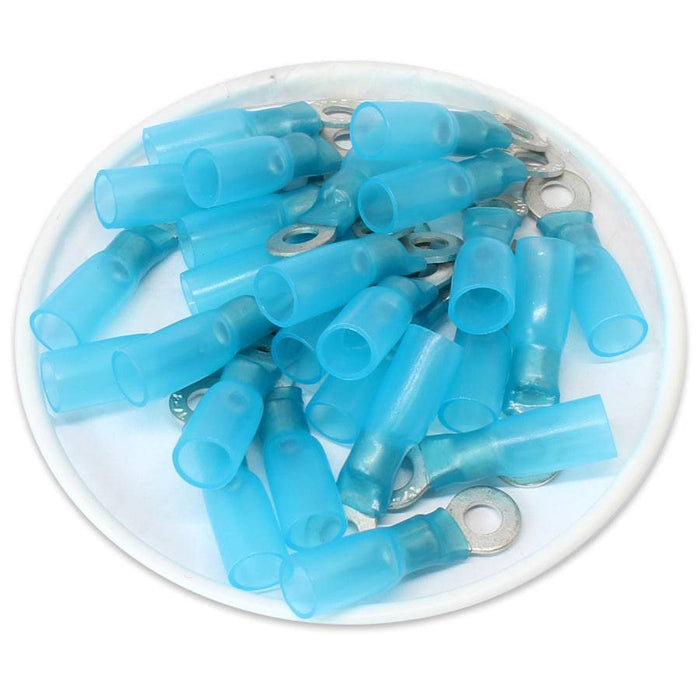

16 to 14 AWG Heat Shrink Ring Terminals, #8 Stud, Polyolefin, 25 Pieces - DSB08
Original price
$3.40
-
Original price
$3.40
Original price
$3.40
$3.40
-
$3.40
Current price
$3.40
SKU DSB08
Availability:
in stock, ready to be shipped
HEAT SHRINKABLE RING TERMINALS: POLYOLEFIN
Heat shrink insulated ring terminals are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.
DIMENSIONS & FEATURES:
| Wire Size: | 16 to 14 AWG |
| Stud Size: | #8 |
| Color: | Blue |
| D: | 5.8mm (0.23") |
| D1: | 2.2mm (0.09") |
| D2: | 4.3mm (0.17") |
| B: | 8.5mm (0.37") |
| E: | 21.0mm (0.82") |
| L: | 28.0mm (1.10") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Polyethylene |
| Temperature Rating: | -67oF to 221oF (-55oC to 125oC) |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None:
Documents
Click to view product spec sheet:
