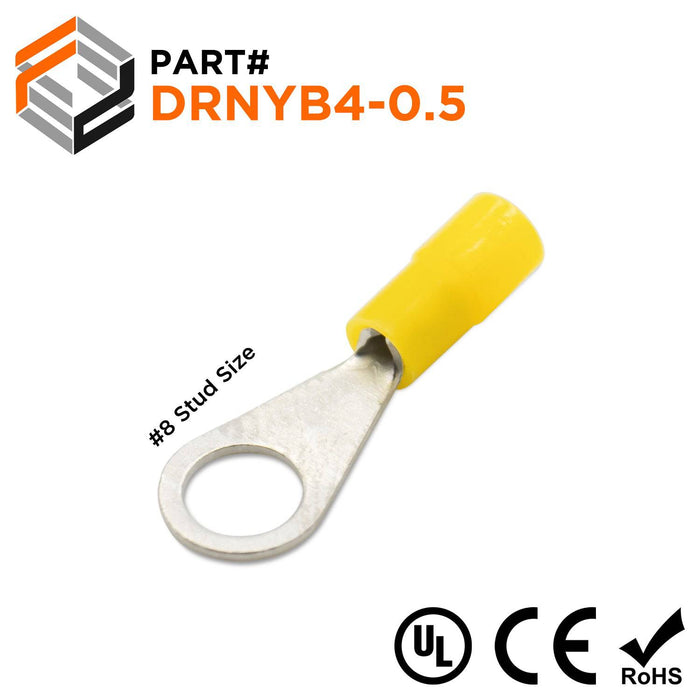

DRNYB4-0.5 Nylon Ring Terminal Brazed Seam 26-22AWG Yellow 100/pk
Original price
$9.68
-
Original price
$9.68
Original price
$9.68
$9.68
-
$9.68
Current price
$9.68
SKU DRNYB4-05
Availability:
in stock, ready to be shipped
Ring terminals offer a tight and secure connection in high vibration areas, Nylon insulation sleeve is securely fastened to metal insulation grip sleeve, providing protection to crimp joint. Color coded according to industry standards Internal barrel serrations offer good wire contact and maximum tensile strength.
Dimensions & Features:
| Wire Range: | 26-22 AWG |
| Stud Size: | #8 |
| Color: | Yellow |
| T: | 0.50mm (0.02") |
| L: | 14mm (0.55") |
| F: | 6.0mm (0.23") |
| E: | 8.0mm (0.31") |
| W: | 6.5mm (0.26") |
| D | 2.3mm (0.09") |
| D1: | 1.0mm (0.04") |
| D2: | 4.3mm (0.17") |
| Terminal Material: | Tin-Plated Copper |
| Terminal Insulation: | Nylon |
| Max Electrical Rating: | 600 Volts (105°C) |
| Max Electrical Current: | 18 AMP |
| Seam: | Butted |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
