MPGamma SPN152212 - Push Button Panel, Size: 6" x 9" x 5", 304 Stainless Steel, UL Listed
Save 67%
Original price
$184.76
Original price
$184.76
-
Original price
$184.76
Original price
$184.76
Current price
$61.59
$61.59
-
$61.59
Current price
$61.59
SKU SPN152212
Availability:
Low stock
CLOSEOUT - SALES ARE FINAL
Not Eligible For Free Shipping Promotion
WATERTIGHT PUSH BUTTON PANELS
SPN SERIES:
- Watertight boxes made in AISI 304L (Wnr 1.4307) stainless steel.
- Fine external SATIN finish, medium Scotch-Brite type.
- Cover with welded and finished corners with leak-proof clamping screws.
- 22.5mm opening(s) in cover to accommodate push button mounting.
- Sheet metal thickness values of the body and cover from 10/10mm to 12/10mm depending on the size.
- Polyurethane seal with robotized application.

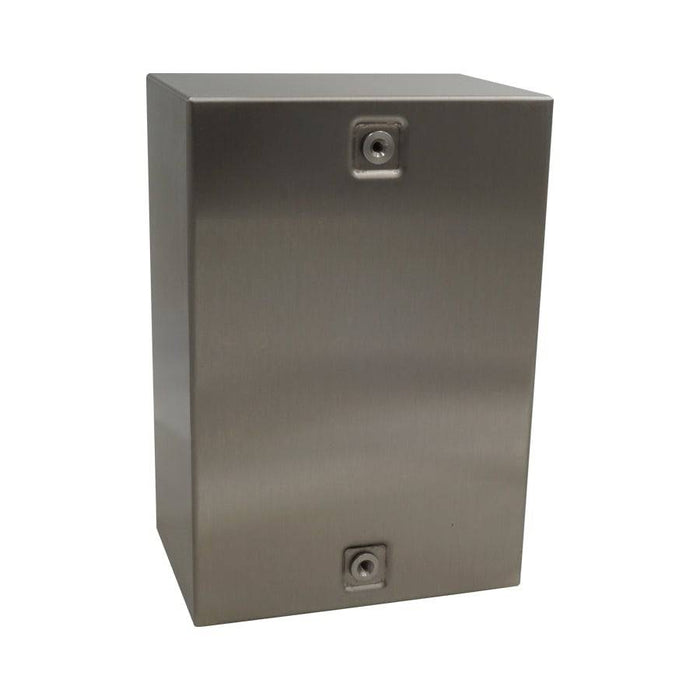

- Rear prearrangement for wall fixing with M5 blind threaded holes.
PLUS ON DEMAND FOR CUSTOMIZATION (Contact Us):
Material: AISI 316L (Wnr 1.4404)
Drilling: as per drawings on body and door.
Dimensions: specials
Seals: silicone

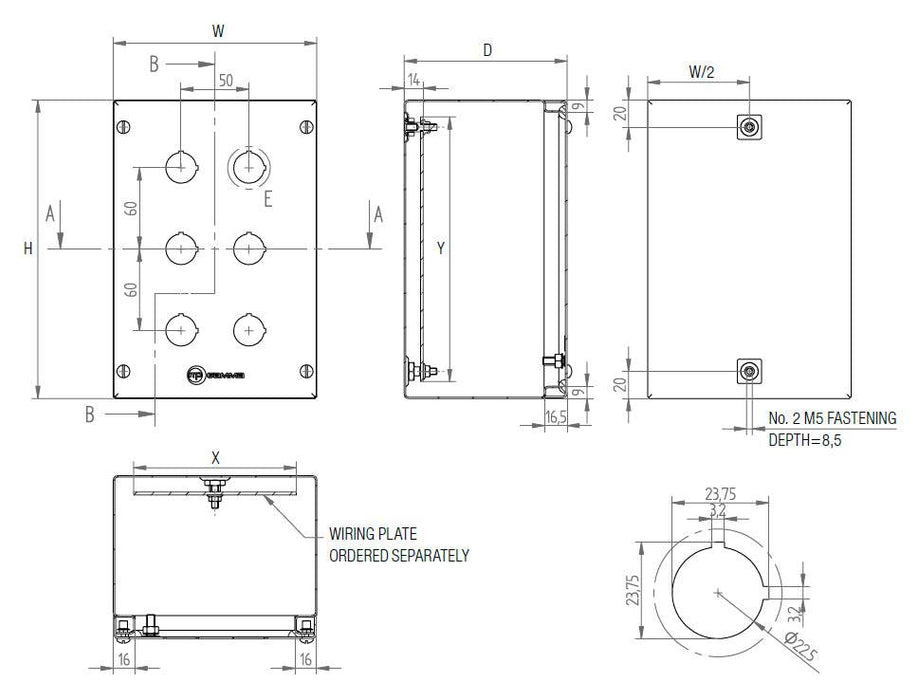

Dimensions & Features:
Nominal Dimensions: 6x9x5" (WxHxD)
| W: | 5.91" (150mm) |
| H: | 8.66" (220mm) |
| D: | 4.72" (120mm) |
| X: | 4.72" (120mm) |
| Y: | 7.68" (195mm) |
| Points of Closure: | 4 |
| Wall Fixing Points: | 2 |
| Holes: | 6 |
| Certifications: |  |
Cross References
Cross Reference Parts:None
